A little something I cooked up [message #96913] Sat, 12 August 2023 21:27 Go to previous message
gofar99 is currently offline  gofar99
Messages: 1950
Registered: May 2010
Location: Southern Arizona
Illuminati (5th Degree)

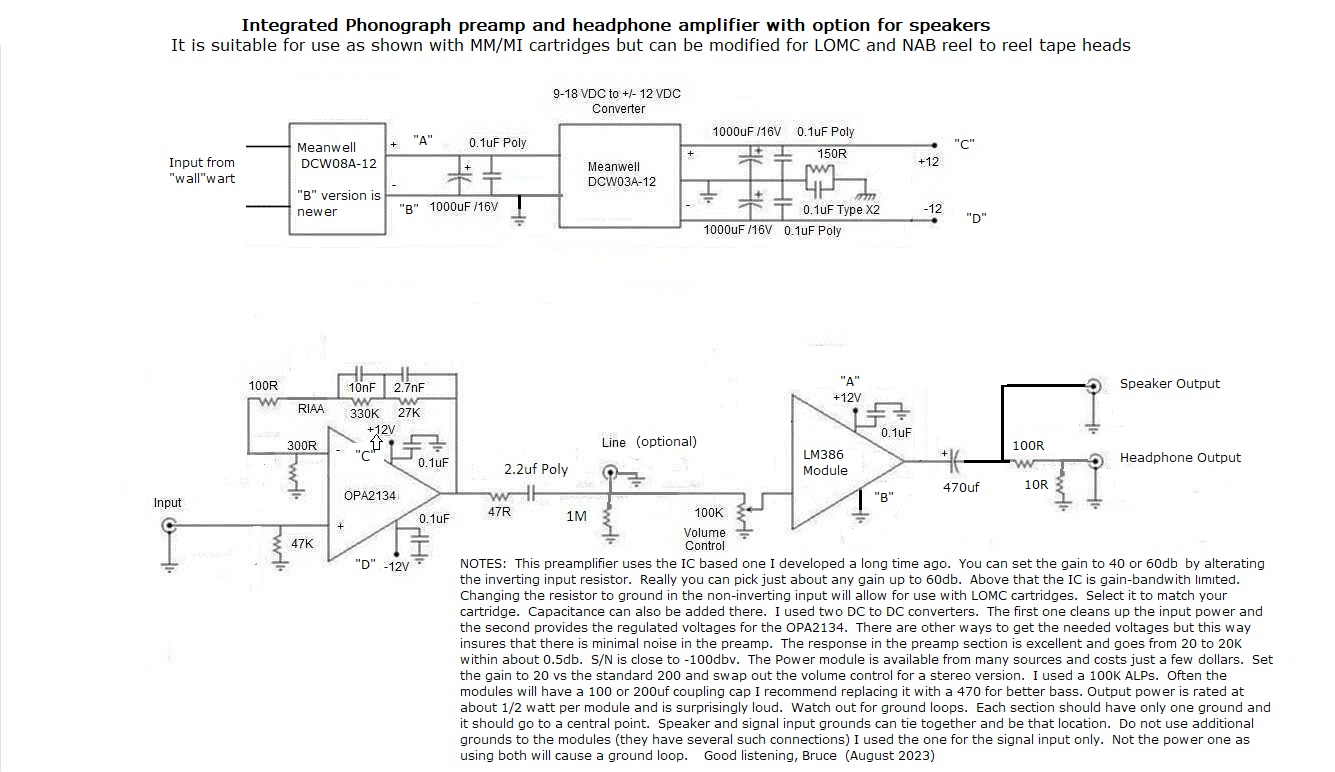

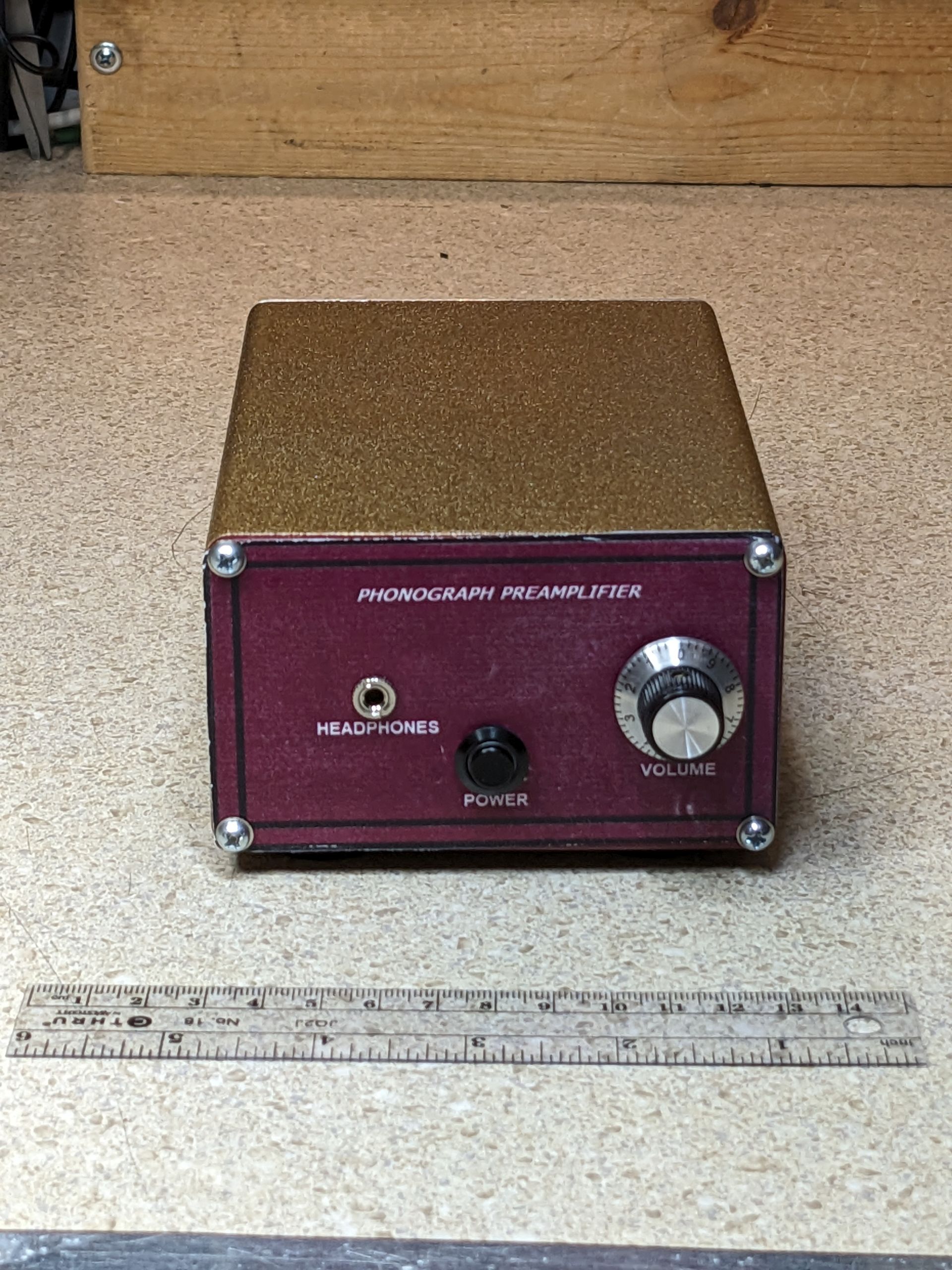

I really didn't need this so it is just a fun project. Very clean phono preamp paired with some small amps. It is somewhat modular as the amps and power supply are modular. The power supply is overkill for sure...but with phones any hum is really bad news. It can drive speakers as well and is rather loud. About 1/2-1 watt per channel. Cheap to build as well./forum/index.php?t=getfile&id=3343&private=0 /forum/index.php?t=getfile&id=3344&private=0

Good Listening
Bruce
