| Barzilay 4pi [message #81305] |
Sat, 09 May 2015 17:21  |
Jeff V.
Messages: 11
Registered: April 2015
|
Chancellor |
|
|
Thought I would share my 4pi build. Although I am using the 4pi crossover & recommended drivers I am using some vintage Barzilay cabinets. Stuffed the cabinets come in at 4 cubic feet.
I started by cutting the baffle which is 3/4" mdf.
You may notice a frame around the baffle. This was needed to install speaker cloth.

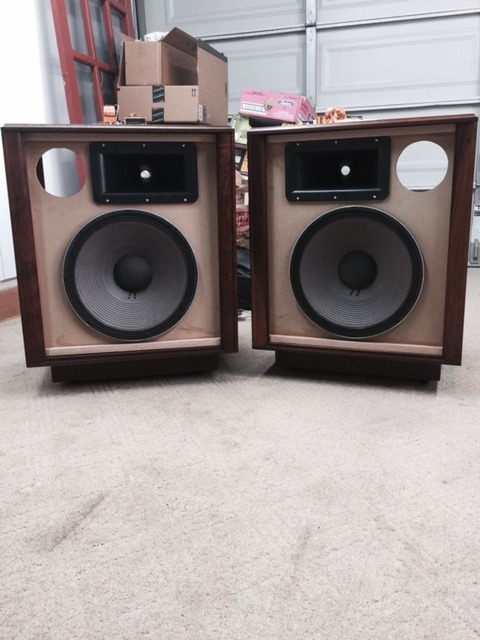

Making a stereo pair I chose to build them mirrored.
I tried to keep my build as close as possible to to Wayne's 4pi. The bracing and port placement are based on the 4pi instructions.
I still need to do some cabinet sealing and add some insulation. Also need to properly mount the crossover & do some wire management.

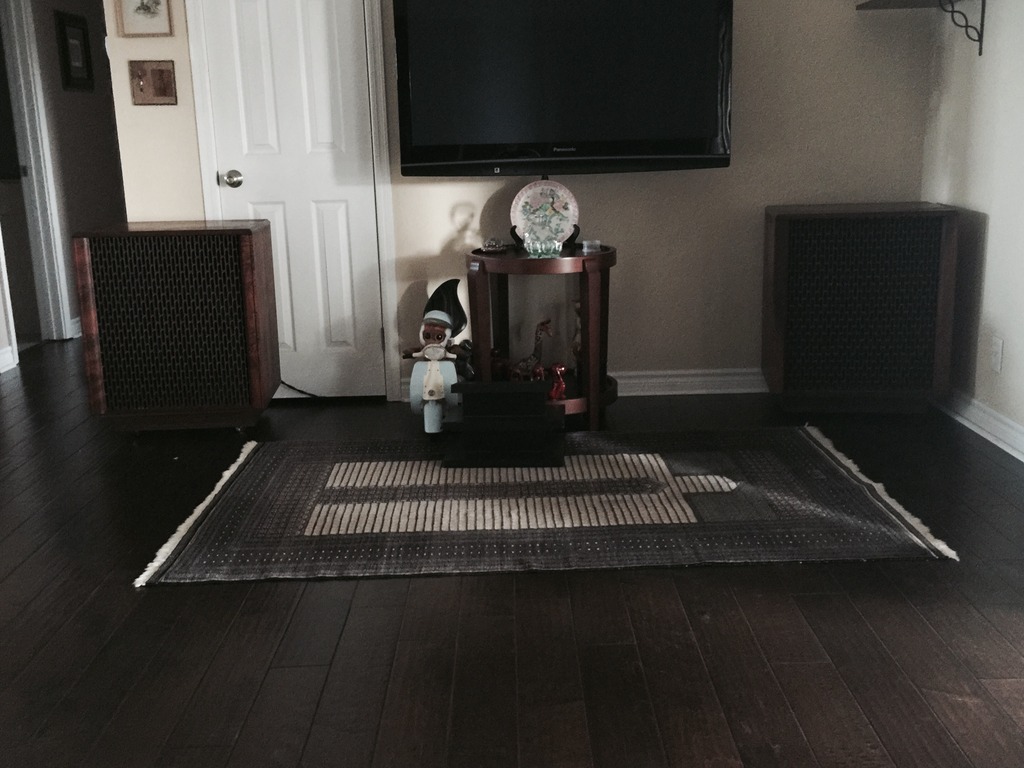

Even though they are not finished I have them set up, playing music. Sound great! If they improve once finished all the better!
|
|
|
|
