Brace for 4Pi? [message #78545] Thu, 05 December 2013 06:13 Go to next message
HPower is currently offline  HPower
Messages: 16
Registered: October 2013
Location: Newmarket, ON Canada
Chancellor
index.php?t=getfile&id=1348&private=0
.

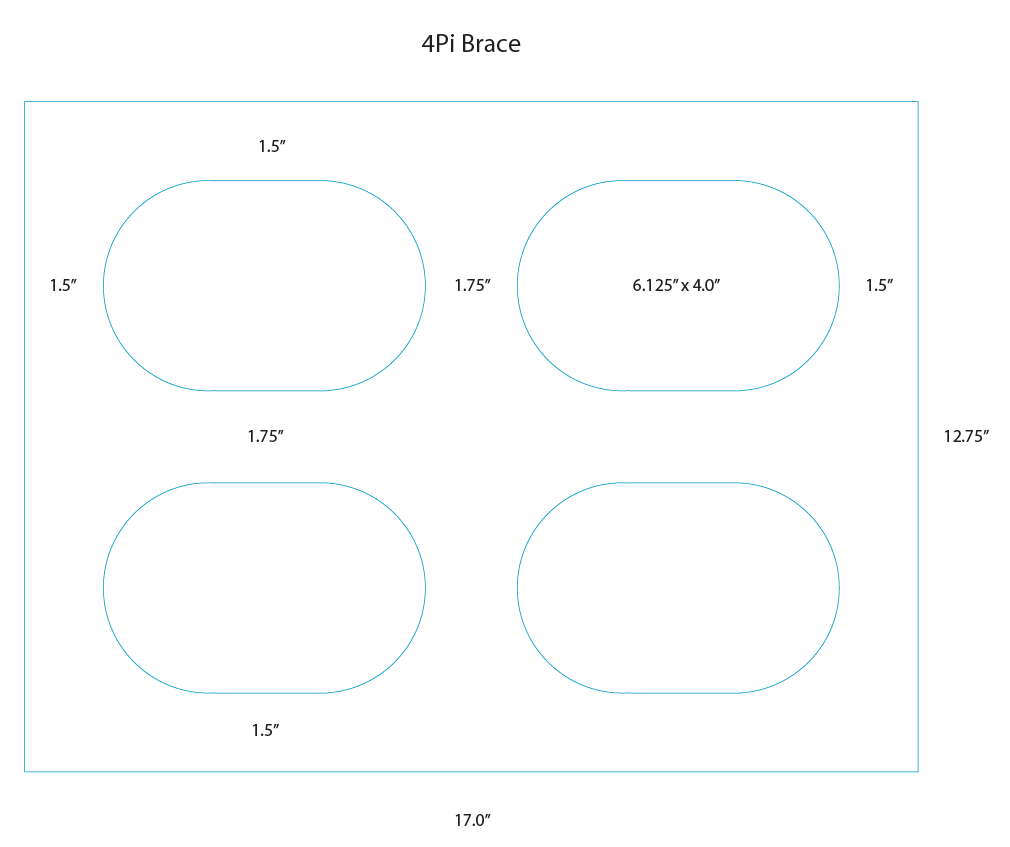

Would this be a more substantial way of building a brace for a pair of 4Pis.
Do the oval cut outs look like they will allow enough airflow?





  • Attachment: 4Pi-Brace.png
    (Size: 42.28KB, Downloaded 2435 times)
  • Attachment: IMG_5875.jpg
    (Size: 555.67KB, Downloaded 288 times)


The 3 most feared words in racing... "Powered by Honda"
Re: Brace for 4Pi? [message #78546 is a reply to message #78545] Thu, 05 December 2013 06:15 Go to previous messageGo to next message
HPower is currently offline  HPower
Messages: 16
Registered: October 2013
Location: Newmarket, ON Canada
Chancellor

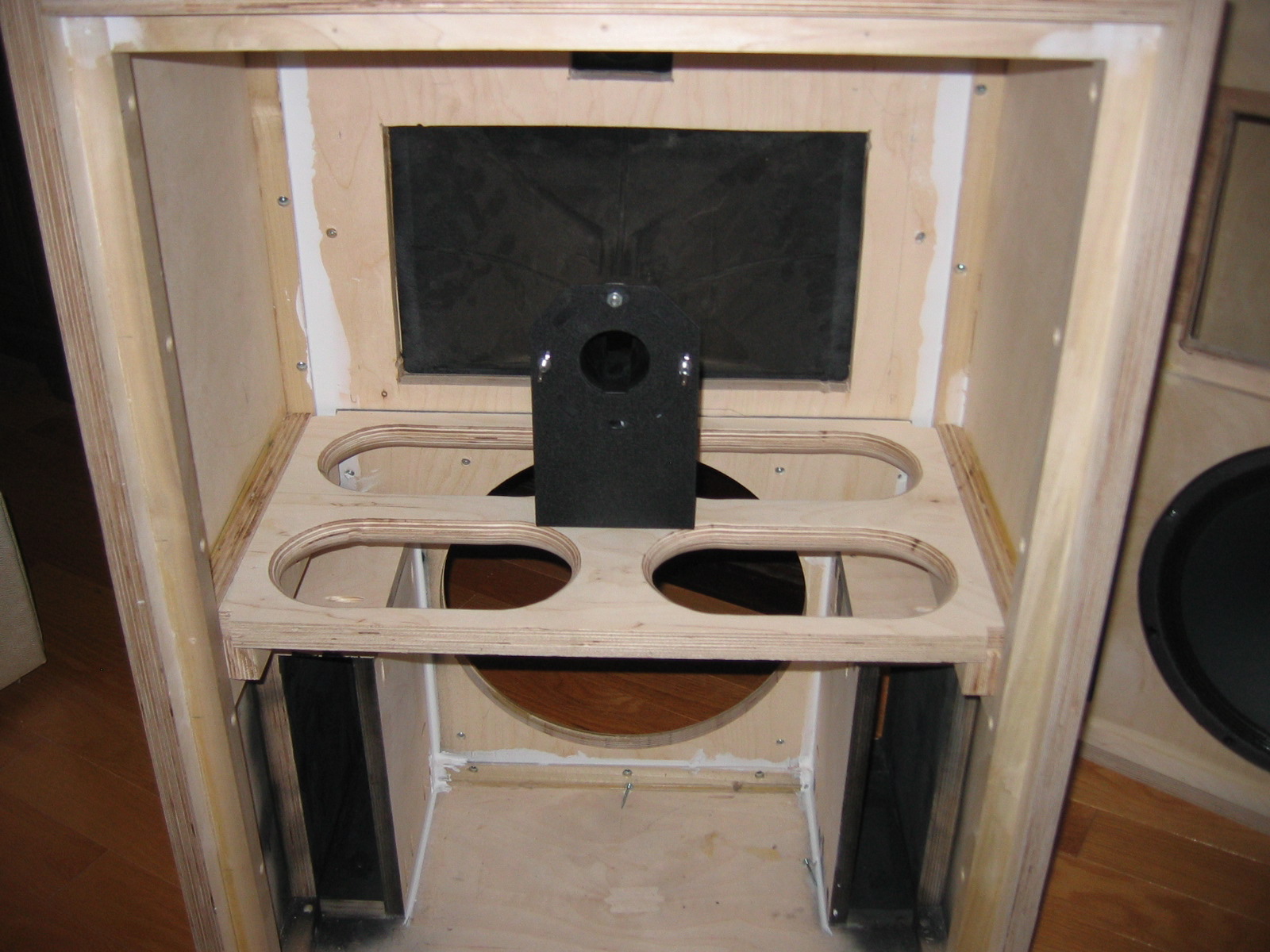

I did something similar when I built my Cornscalas a couple of years go.
As you can see, it also makes an ideal way to support the horn and driver, and in the case of the 4Pi a nice platform to lay the insulation on.

index.php?t=getfile&id=1350&private=0

Mind you, the Cornscala Brace pictured above has a larger footprint than the 4Pis will have...
13.5" deep x 23.75" wide, with 5" x 9.5" ovals.

  • Attachment: IMG_5875.jpg
    (Size: 555.67KB, Downloaded 2215 times)


The 3 most feared words in racing... "Powered by Honda"
Re: Brace for 4Pi? [message #78551 is a reply to message #78546] Thu, 05 December 2013 16:52 Go to previous message
Wayne Parham is currently offline  Wayne Parham
Messages: 18297
Registered: January 2001
Illuminati (33rd Degree)

That will work just fine.
