compaddict Messages: 86 Registered: April 2014 Location: Auburn, CA USA
Viscount
MiniDSP 4x10 installed crossed at 250 and 1600 with 12db slopes. Mid/high down 11db for basic matching by ear.
Much better sound right off the bat. Weird phasing distortion is gone.
I ended up with an Outlaw Audio 7075 (7x75w) using just two channels for the mid/high and two Outlaw 2200 (200w)monos for the lows.
More later!
Wayne Parham Messages: 18793 Registered: January 2001
Illuminati (33rd Degree)
Please send me the passive crossovers and let me go over them for you. Even though you've gone digital/active, I'd like the passive setup to work for you too. Sorry for the inconvenience. I hope it has been a fun ride, and that the speakers sound good to you.
Nelson Bass Messages: 39 Registered: November 2012
Baron
Have you ever heard the 7pi before your build? If not I suggest that you get the crossovers fixed by Wayne so you have a reference to compare with your current solution.
compaddict Messages: 86 Registered: April 2014 Location: Auburn, CA USA
Viscount
No I have not. I do have some very talented people at my disposal and pretty good ears though!
After playing with MiniDSP I can't imagine going back to passive. I just installed a pair of Nolte Audio 4X10" (per pair)175Lbs subs and I now have BASS!
blvdre Messages: 35 Registered: April 2010 Location: Burlington, VT
Baron
compaddict wrote on Wed, 12 November 2014 16:07
No I have not. I do have some very talented people at my disposal and pretty good ears though!
After playing with MiniDSP I can't imagine going back to passive. I just installed a pair of Nolte Audio 4X10" (per pair)175Lbs subs and I now have BASS!
...but you've yet to hear the passive set up properly, so maybe you would prefer it to the DSP. In any event, since you're not using the passives, send them on to Wayne.
compaddict Messages: 86 Registered: April 2014 Location: Auburn, CA USA
Viscount
Success!
John Nolte of Nolte Audio came over and set up the MiniDSP crossover driver by driver. He used the same XO points as WP and measured and set thing up from there.
Spent all day tweeking, went out to dinner then sat down and listened for a while.
These are indeed very nice speakers.

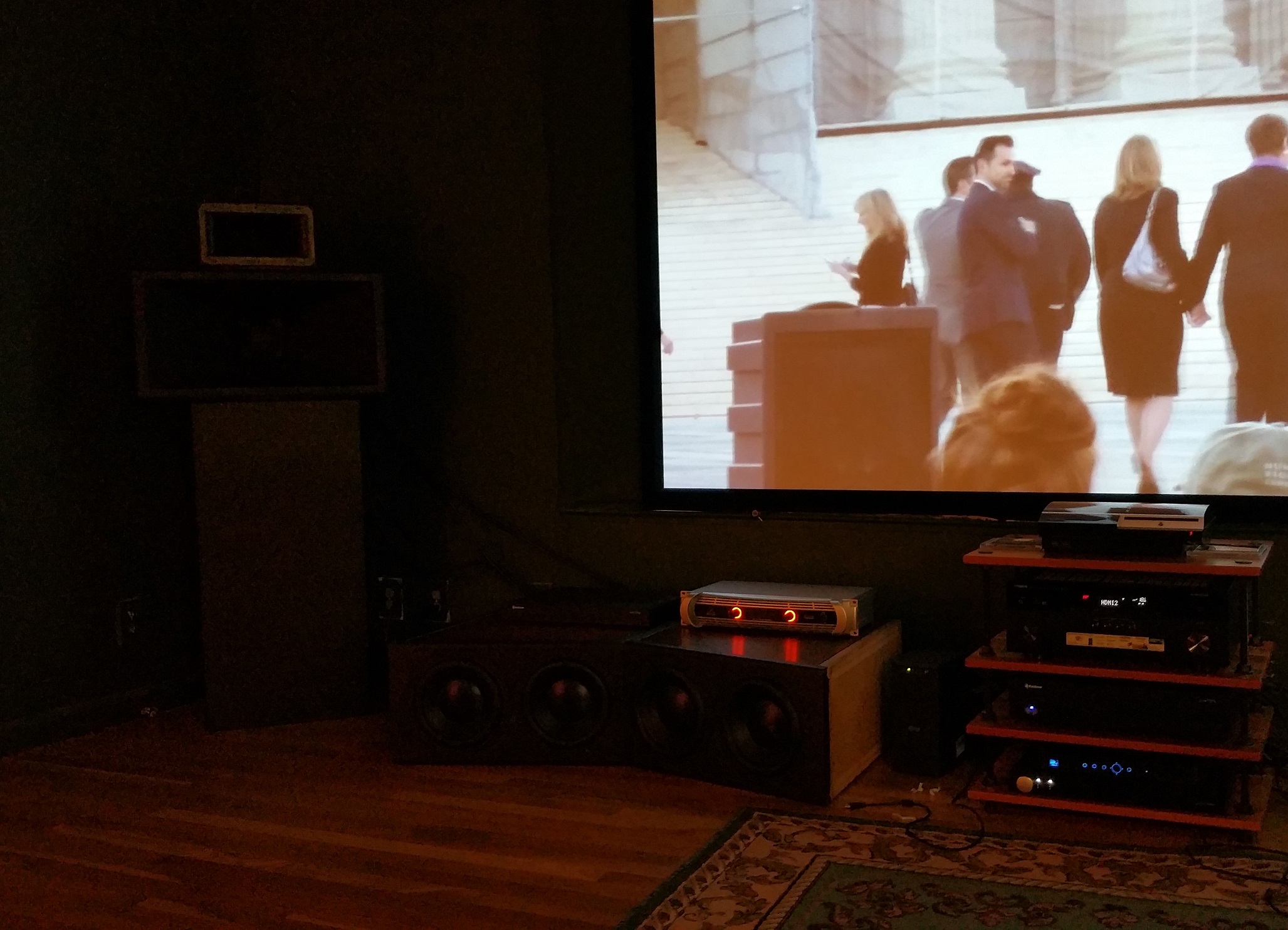

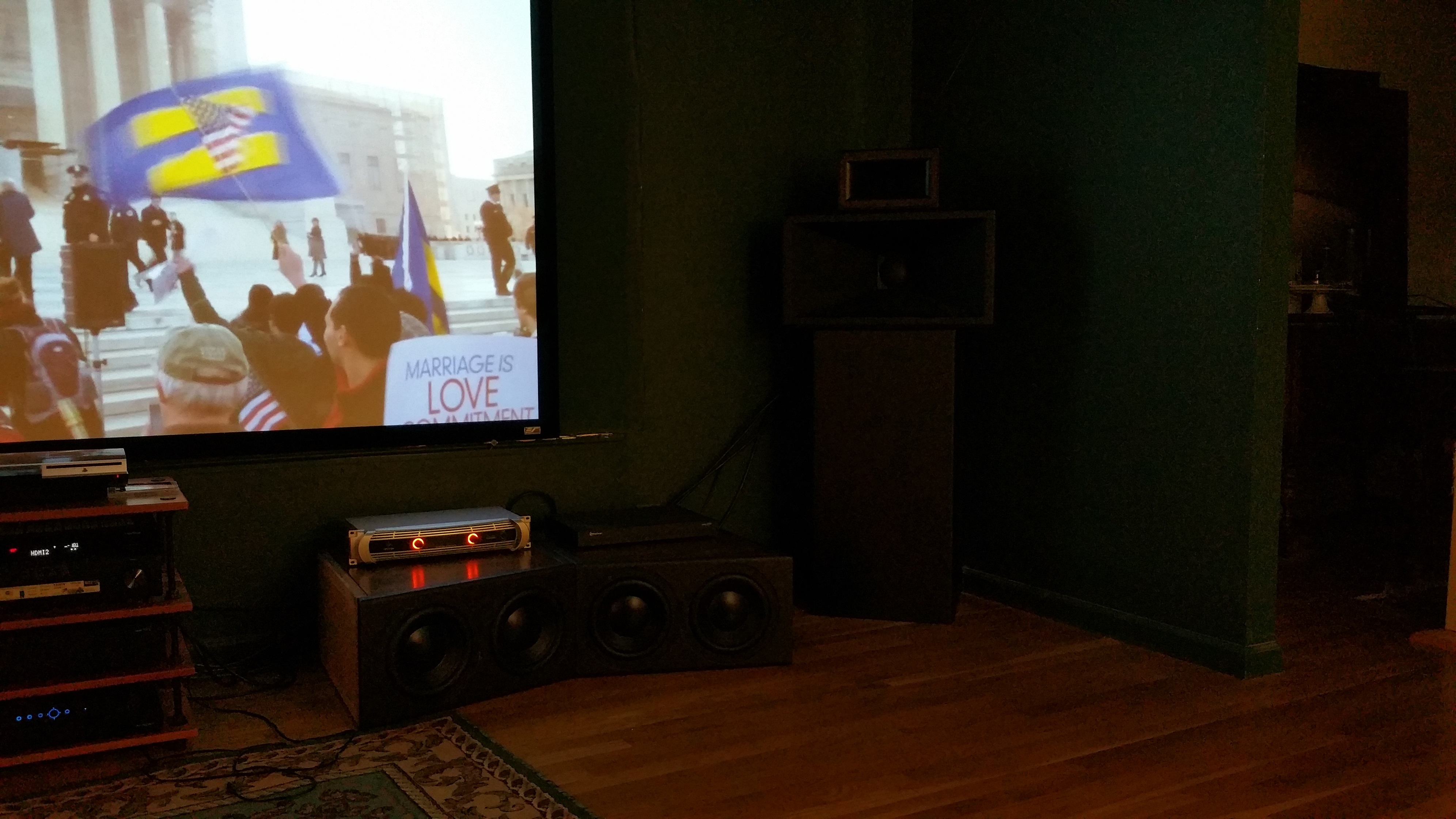

Because of the design of the subs, we had to lay them down on the front wall. They don't seem to do anything bad in that position. The sealed subs are flat to 24Hz and make crazy amounts of bass.
We have not done any EQ at all and could walk away right now and be 100% satisfied.
compaddict Messages: 86 Registered: April 2014 Location: Auburn, CA USA
Viscount
I measured the distance between voice coils between the subs and the the drivers in the 7Pi cornerhorns and added delay accordingly. The main speakers were 4.xx ms away. Amazing difference! The subs disappeared and I can no longer pinpoint the mid and high drivers with my ears. I now have stereo bass and very nice resolution on the mid/top!
compaddict Messages: 86 Registered: April 2014 Location: Auburn, CA USA
Viscount
In the end my goals have been met. Nothing lacking. On a scale of one through ten..
Soundstage: 7
Soundstage anywhere on my couch: 10
Articulation: 8
Dynamics: 8
The ability to play loud: 10
Lack of harshness: 9
Natural sound: 8
compaddict Messages: 86 Registered: April 2014 Location: Auburn, CA USA
Viscount
I just bought a pair of NOS JBL 2012H midrange speakers off of ebay!475.00 for the pair. I have been looking for two years.
We will see how that goes. More later!
