Speaker stands for Pi 3 or Pi 4 [message #96223] Thu, 08 December 2022 03:15 Go to next message
porfido1 is currently offline  porfido1
Messages: 3
Registered: December 2014
Esquire
Hi from Italy, guys...
After two years with a couple of Pi2, now I spent some years with a couple of Pi 3 and couldn't be happier.
Here's the question: I've put them on two low stands, so the tweeter sits below ear level... I've seen some photos of the Lone Star meeting in which Wayne puts the speakers on taller stands tilted upwards...
Are they tall enough to put the horn to ear level of a sitting person?
If so, if it is better like that, I'll do the same...
Thank you! And thank you again, Wayne, for these amazing speakers!

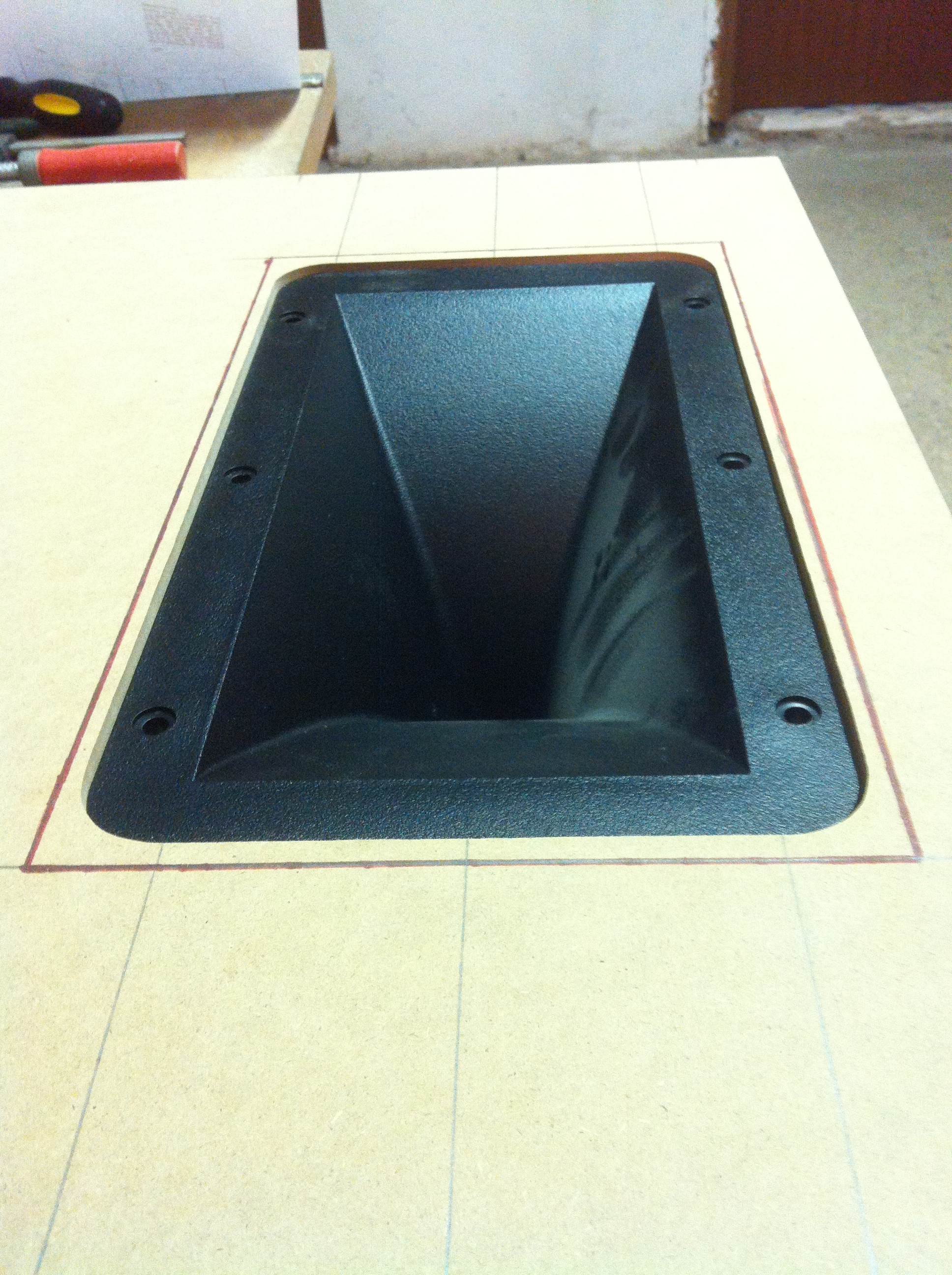

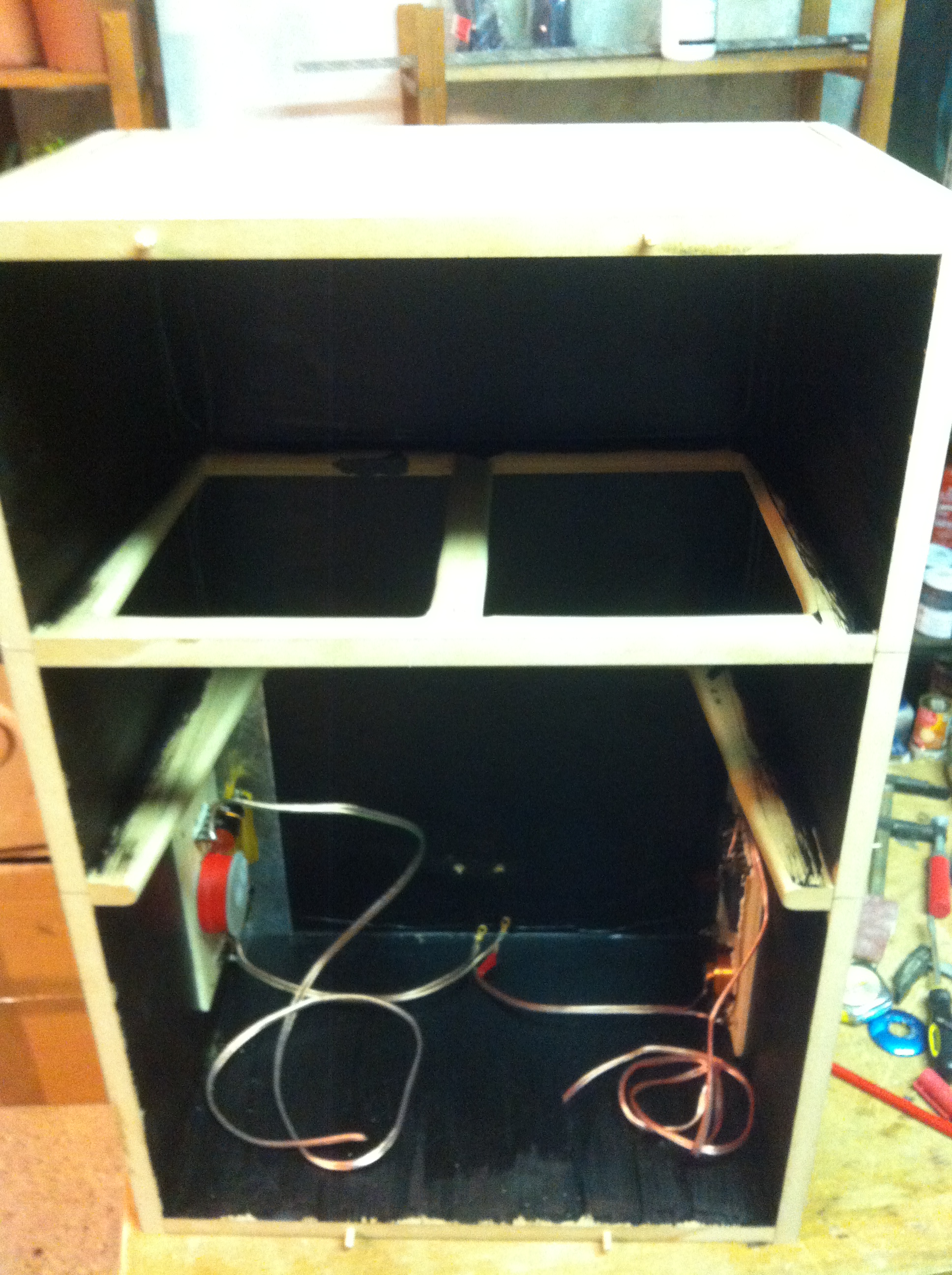

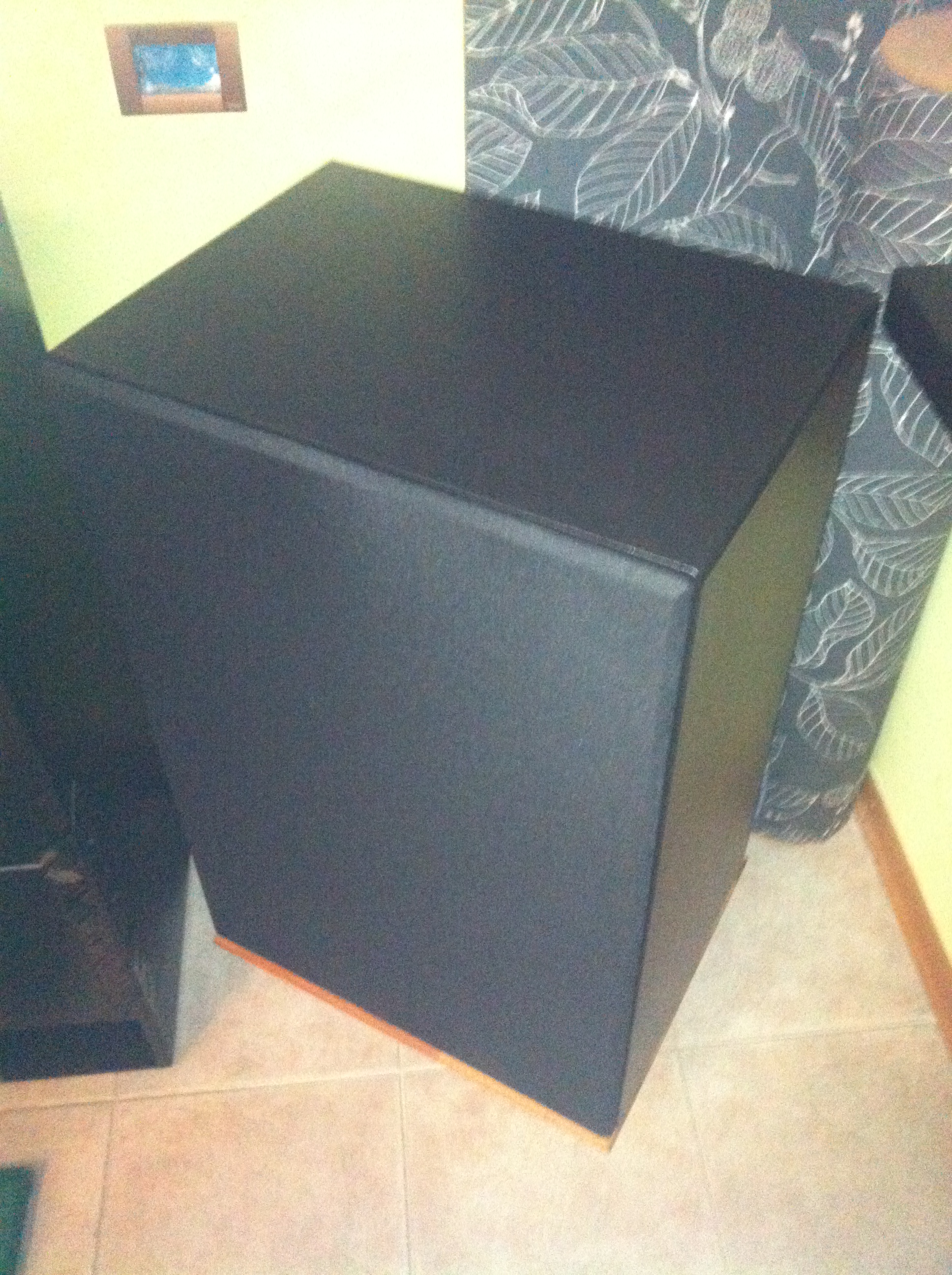

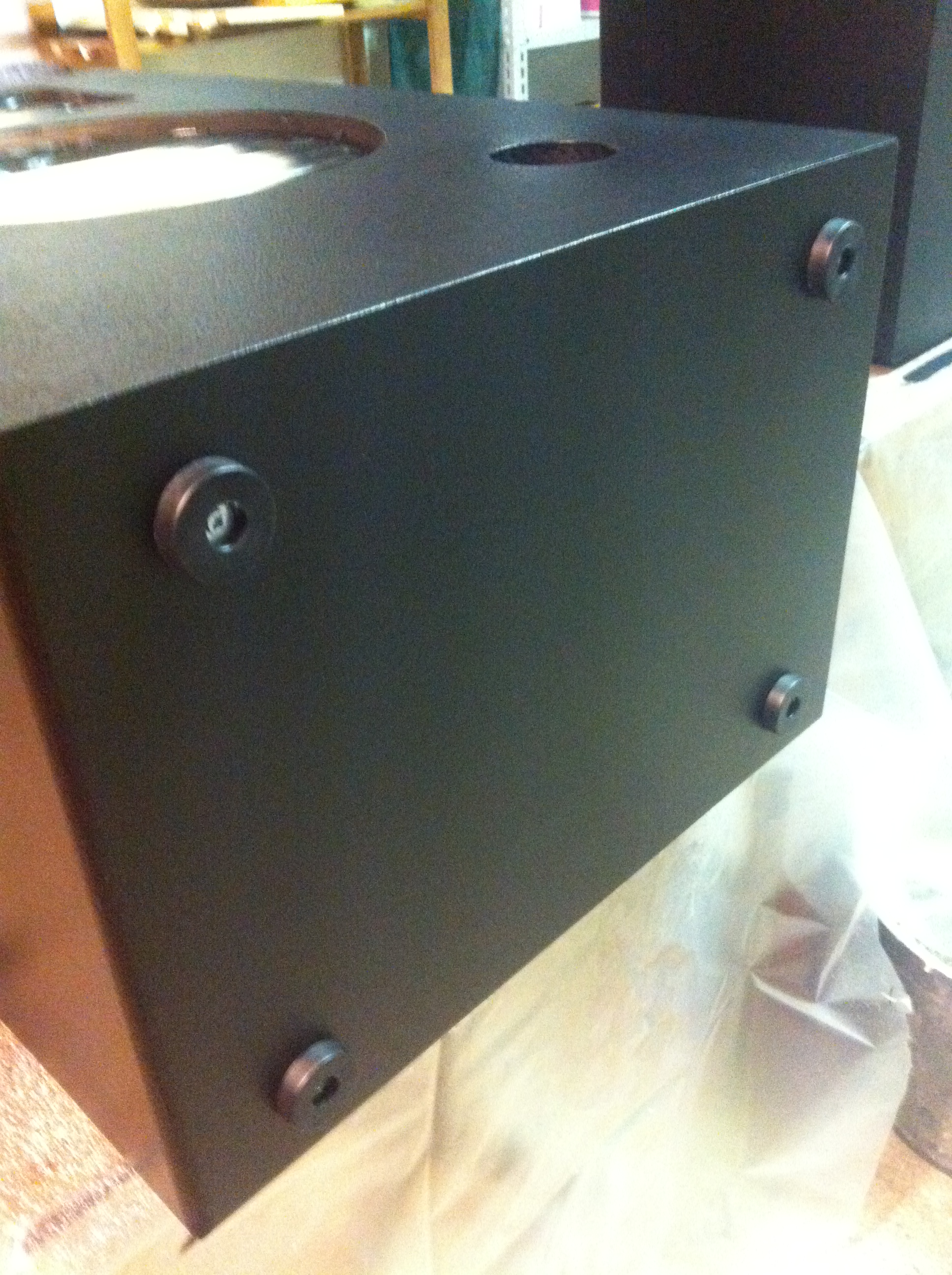

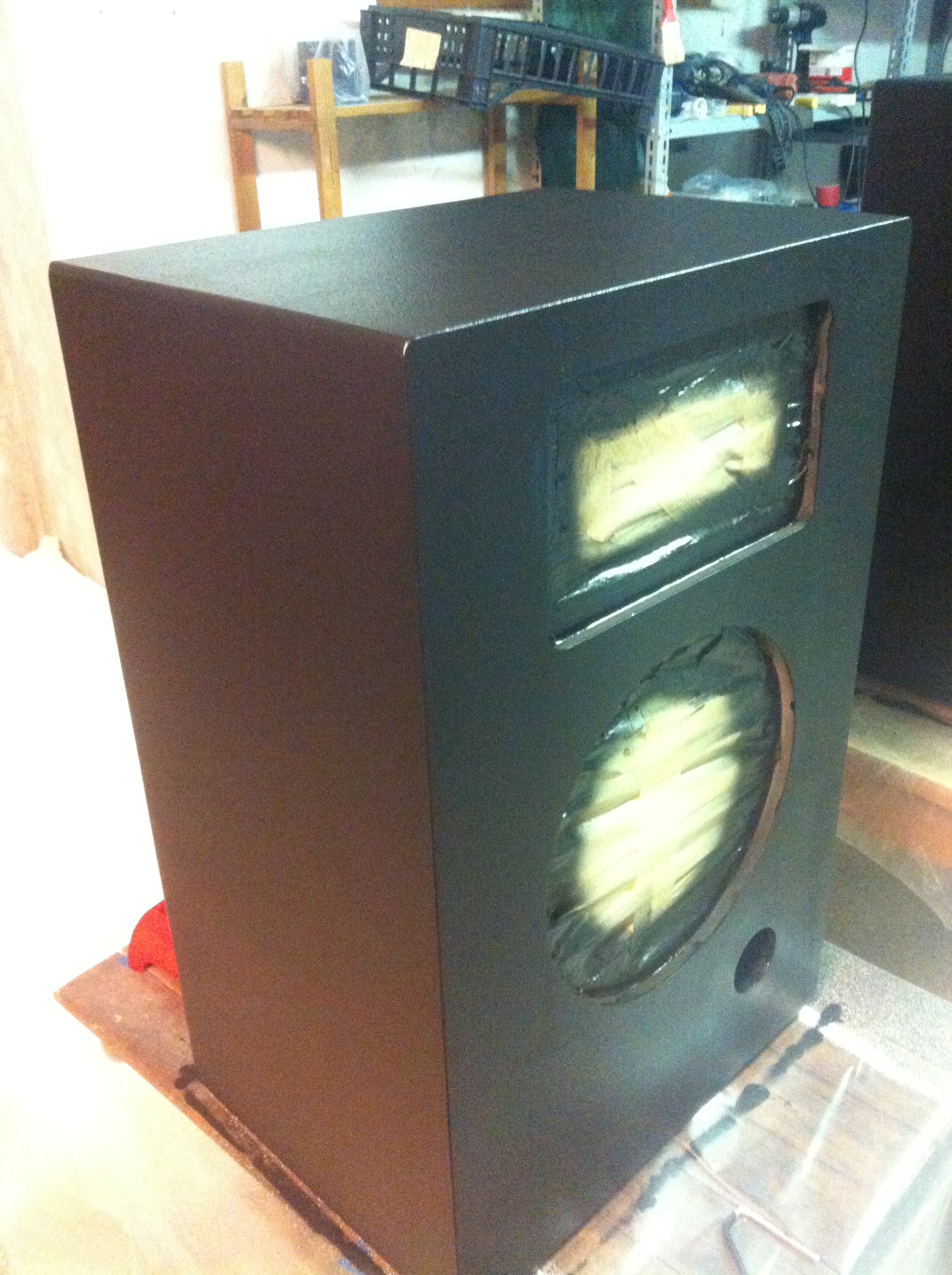

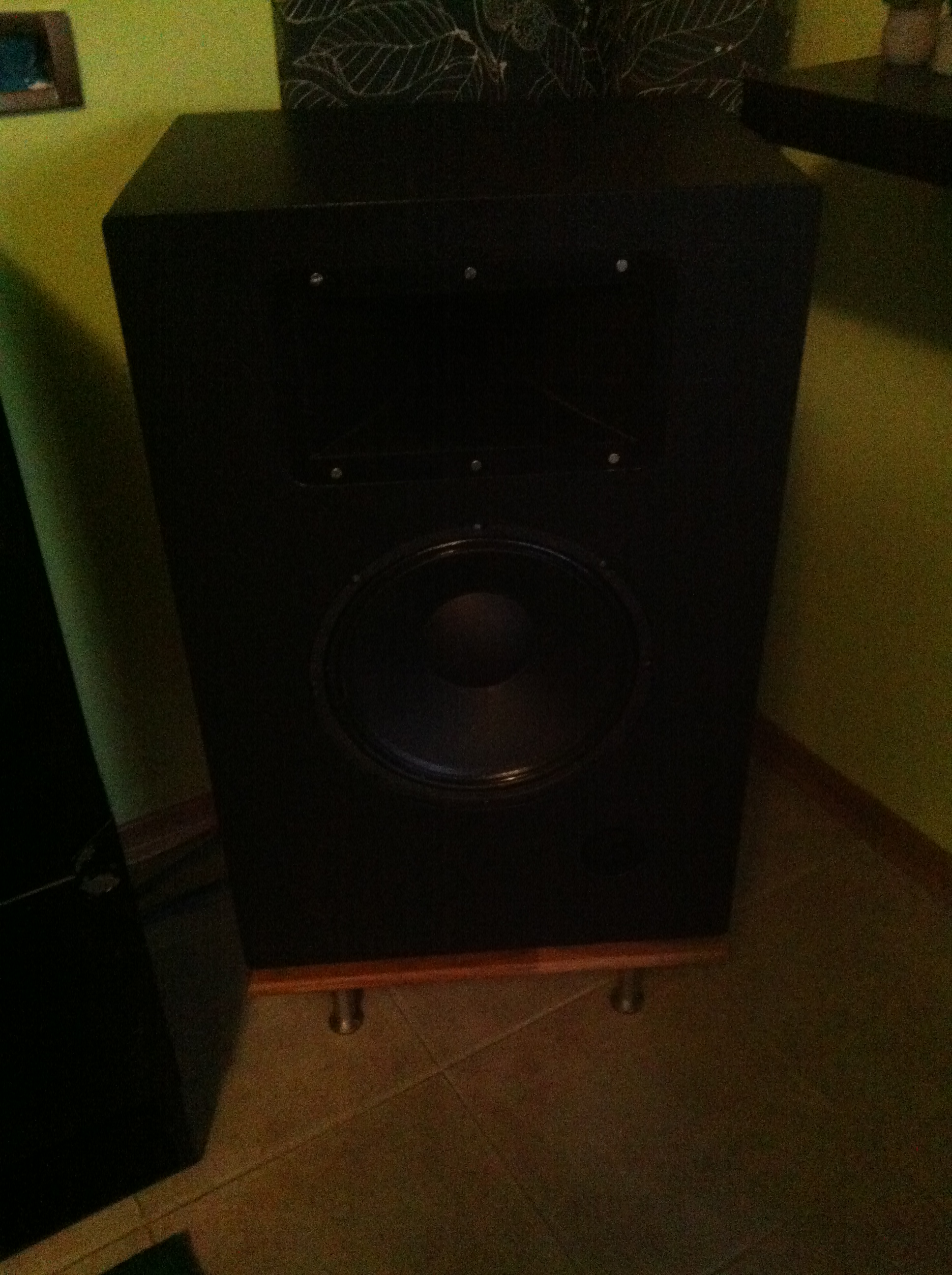

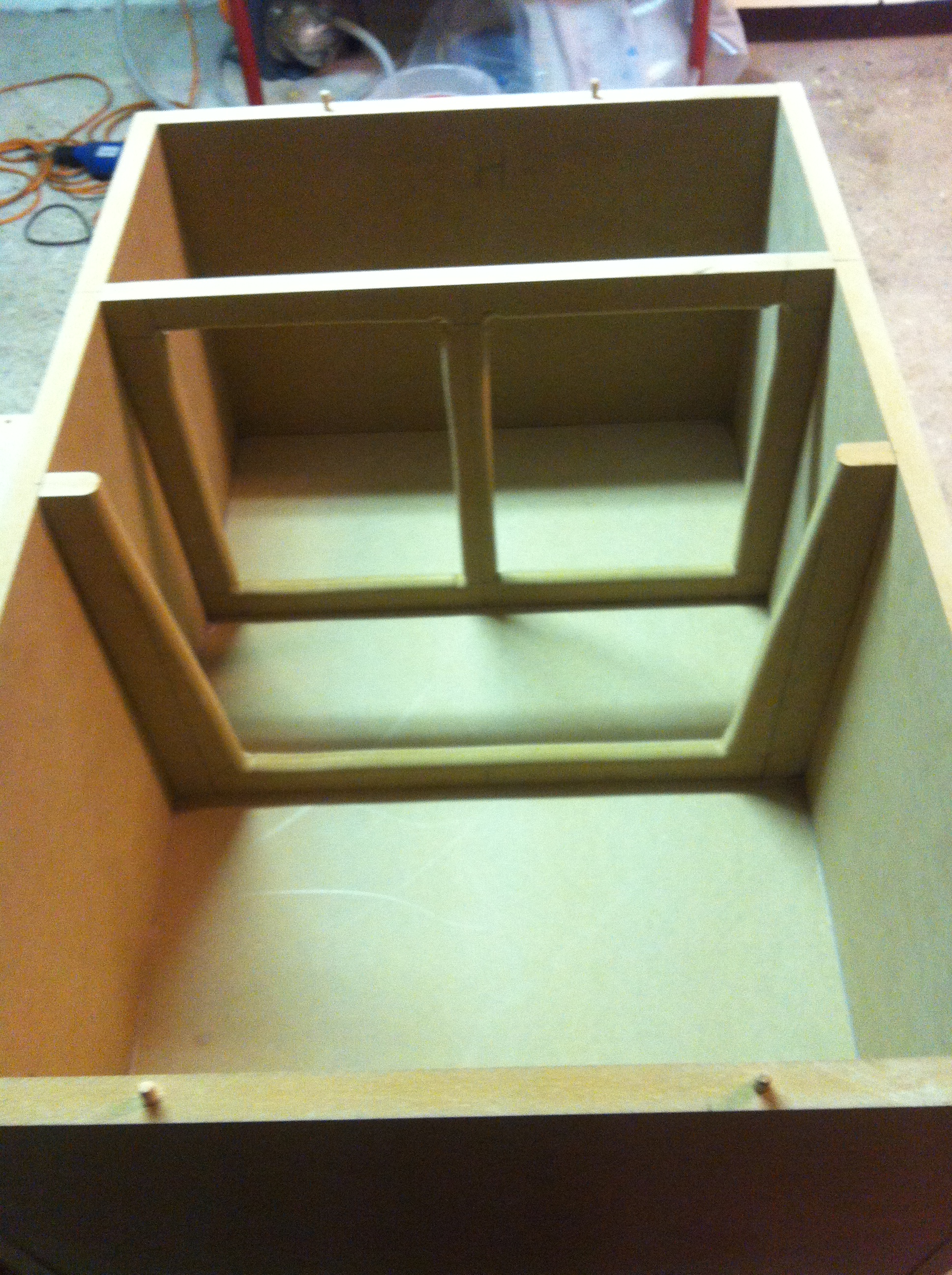

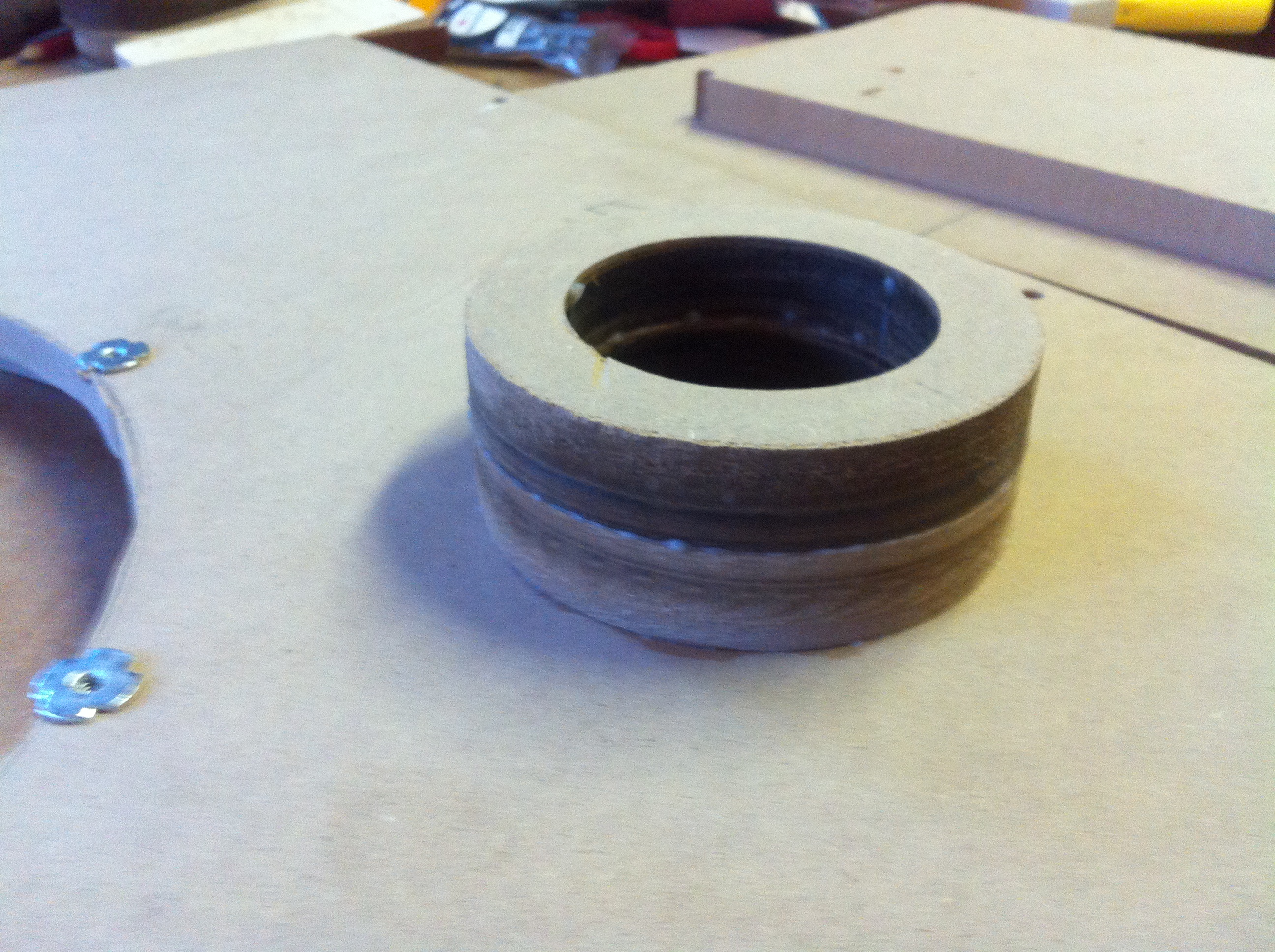

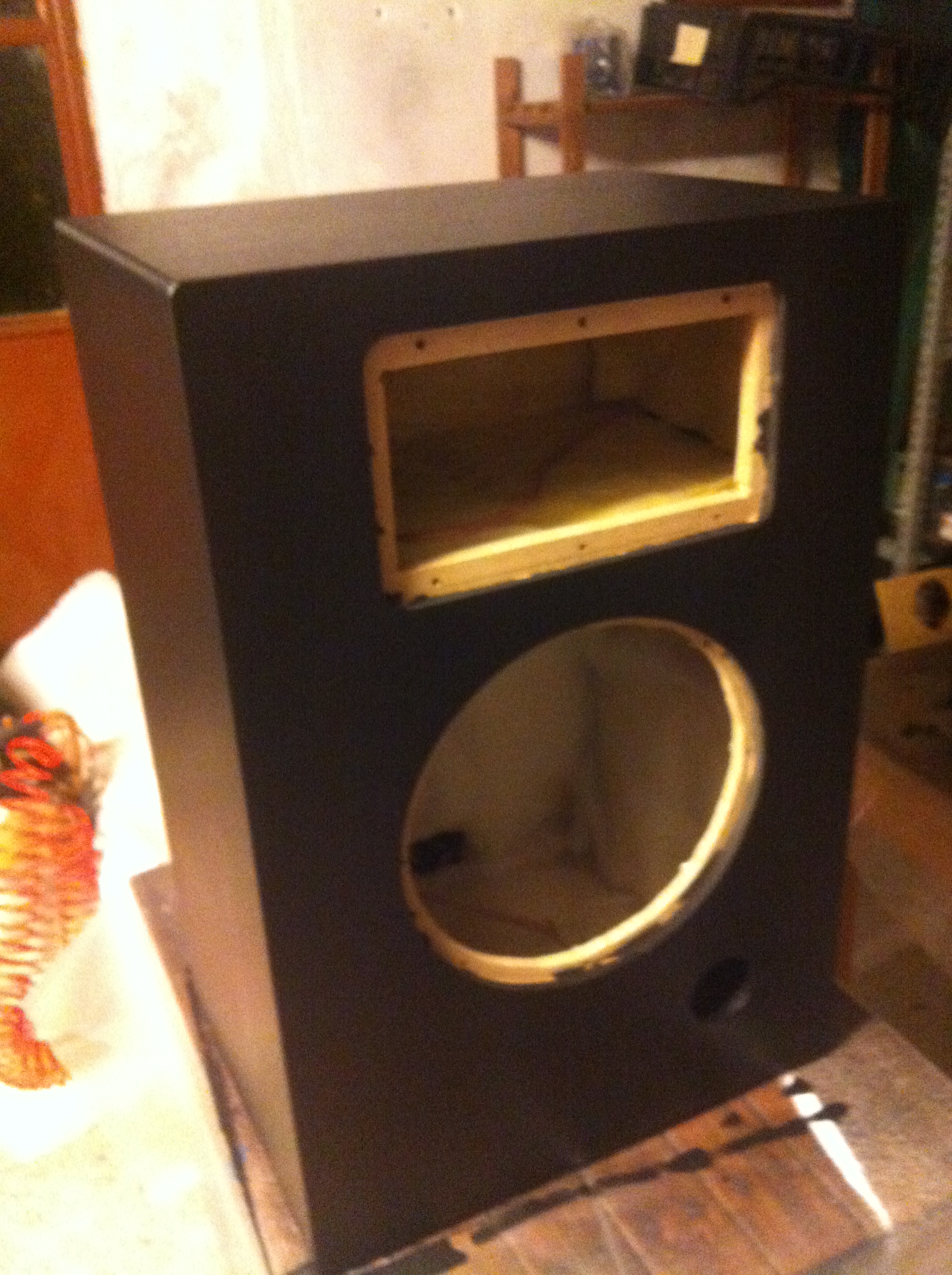

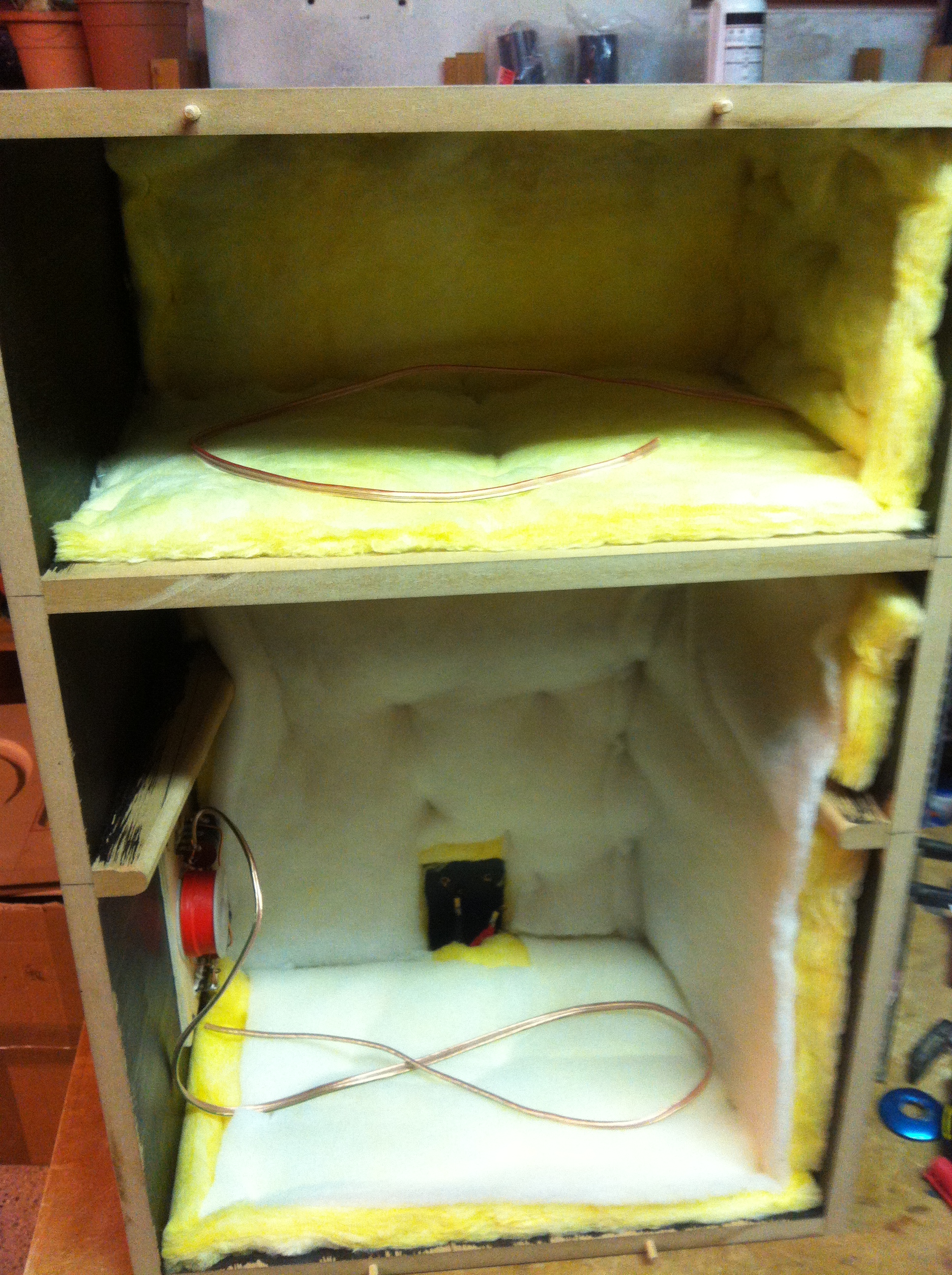

If it can help someone, some images of Pi 3 construction:


/forum/index.php?t=getfile&id=3283&private=0

/forum/index.php?t=getfile&id=3284&private=0

/forum/index.php?t=getfile&id=3285&private=0

/forum/index.php?t=getfile&id=3286&private=0

/forum/index.php?t=getfile&id=3287&private=0

/forum/index.php?t=getfile&id=3288&private=0

/forum/index.php?t=getfile&id=3289&private=0

/forum/index.php?t=getfile&id=3290&private=0

/forum/index.php?t=getfile&id=3291&private=0

/forum/index.php?t=getfile&id=3292&private=0
  • Attachment: IMG_2804.JPG
    (Size: 2.13MB, Downloaded 500 times)
  • Attachment: IMG_2839.JPG
    (Size: 2.00MB, Downloaded 403 times)
  • Attachment: IMG_2904.JPG
    (Size: 1.61MB, Downloaded 476 times)
  • Attachment: IMG_2909.JPG
    (Size: 2.00MB, Downloaded 488 times)
  • Attachment: IMG_2953.JPG
    (Size: 2.05MB, Downloaded 500 times)
  • Attachment: IMG_4173.JPG
    (Size: 1.79MB, Downloaded 485 times)
  • Attachment: IMG_4197.JPG
    (Size: 1.85MB, Downloaded 468 times)
  • Attachment: IMG_4208.JPG
    (Size: 1.73MB, Downloaded 483 times)
  • Attachment: IMG_4221.JPG
    (Size: 1.39MB, Downloaded 478 times)
  • Attachment: IMG_4280.JPG
    (Size: 1.99MB, Downloaded 492 times)
Re: Speaker stands for Pi 3 or Pi 4 [message #96224 is a reply to message #96223] Thu, 08 December 2022 08:52 Go to previous messageGo to next message
Wayne Parham is currently offline  Wayne Parham
Messages: 18785
Registered: January 2001
Illuminati (33rd Degree)

Incredible looking speakers! I love 'em!

I've run my speakers on low stands, just like yours. I like the way they sound that way, but I do think there's an improvement in sound raising them to ear level and employing flanking subs. So that might be one of your next projects.

You might also swap your H290 horns with our H290C waveguides. The radial horns you have sound very good, I could live with them forever. They're smooth and the pattern is quite good for a radial horn. But the H290C is even smoother and the beamwidth is more consistent, so it's a worthwhile upgrade. It's easy to do too 'cause it's a bolt-in upgrade. You will not need to modify your cabinet.
Re: Speaker stands for Pi 3 or Pi 4 [message #96225 is a reply to message #96224] Thu, 08 December 2022 10:31 Go to previous message
porfido1 is currently offline  porfido1
Messages: 3
Registered: December 2014
Esquire
Thank you so much, Wayne!
I will build new stands then!
I already have two tapped horn flanking subs but I was thinking to build two of your 3Pi subs to flatten the low section of response...
Yes, I definitely should change the horns! I think I'll order two and swap them when I will have to move the monsters from a stand to another! Very Happy
Thank you again, Wayne!!!
