| Building a Home Theater & Listening Room [message #80957] |
Wed, 24 December 2014 21:16  |
 |
hydrovac
Messages: 9
Registered: December 2014
Location: Hyderabad
|
Esquire |
|
|
Hi all,
My wife finally parted with a portion of her terrace garden and let me build a home theater.
First off all I find myself very fortunate to build a room that can be dedicated to music listening and watching movies. The room will be 3.96 meters wide, 7.38 meters long and a height of 2.7 meters. So with a little more than 29 m2 it's not a big room at all.
We live in a duplex penthouse (5th & 6th floors with terrace rights). So, traditional construction methods are a bit difficult. I plan to take the prefab route.

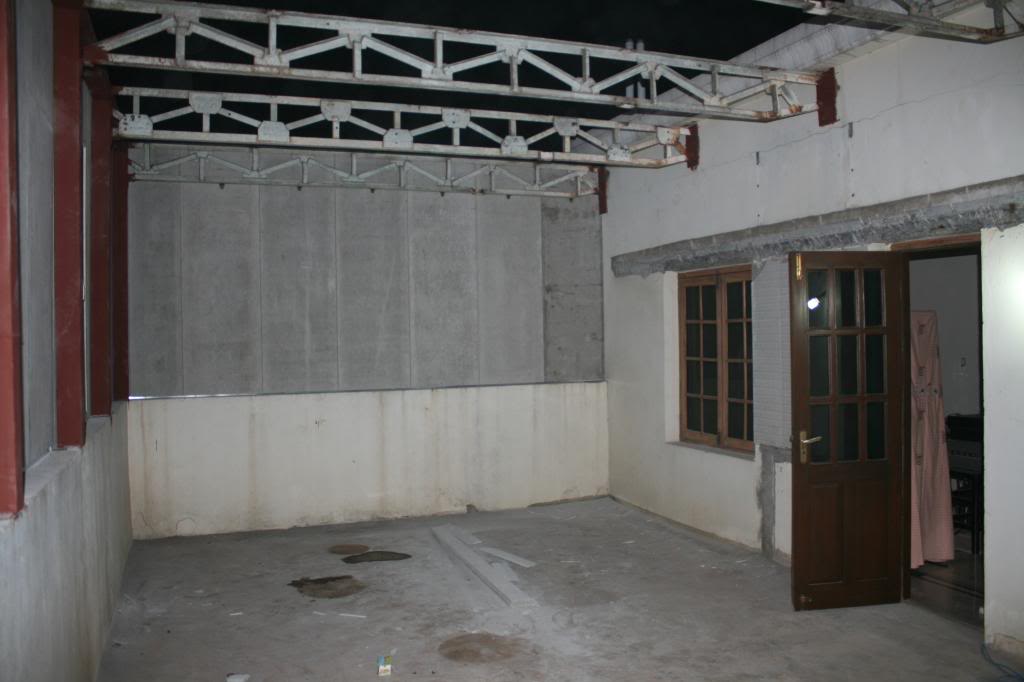

Proposed HT Room area.

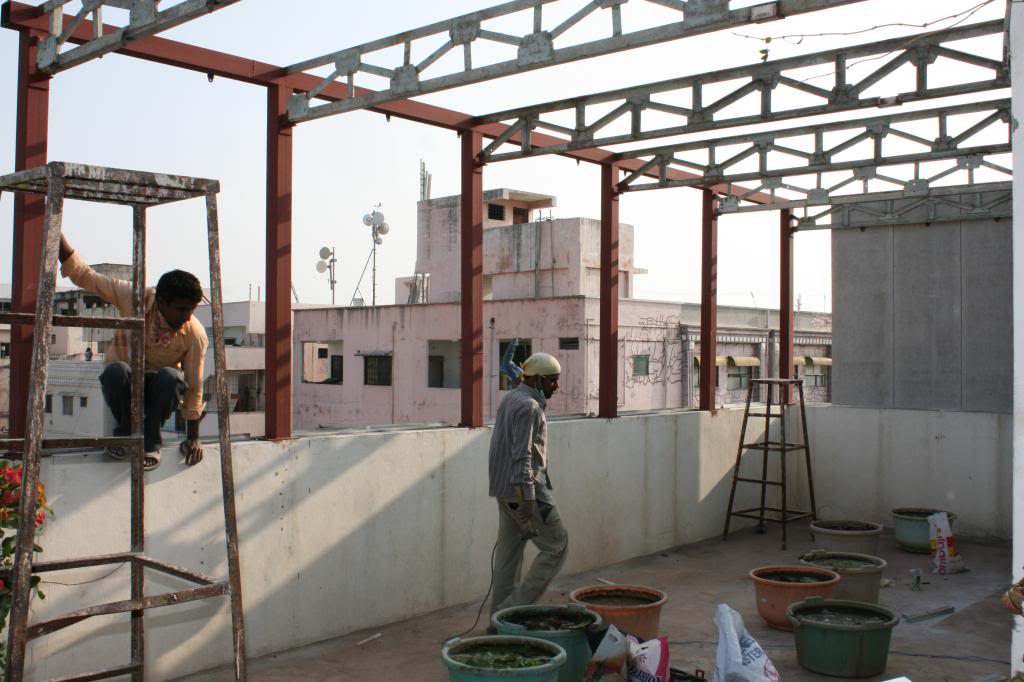

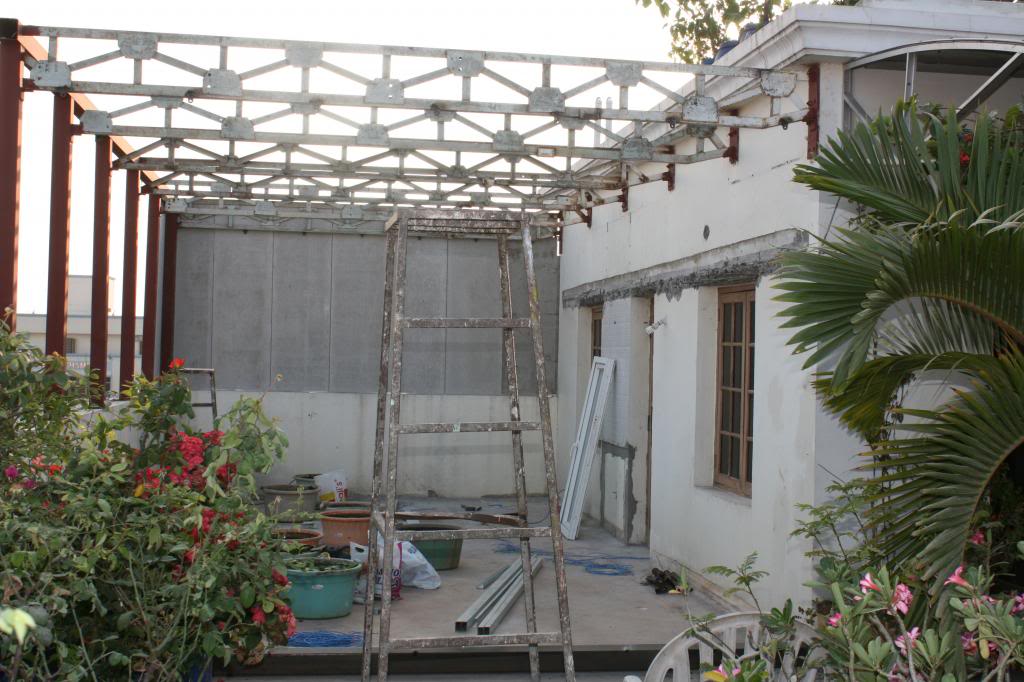

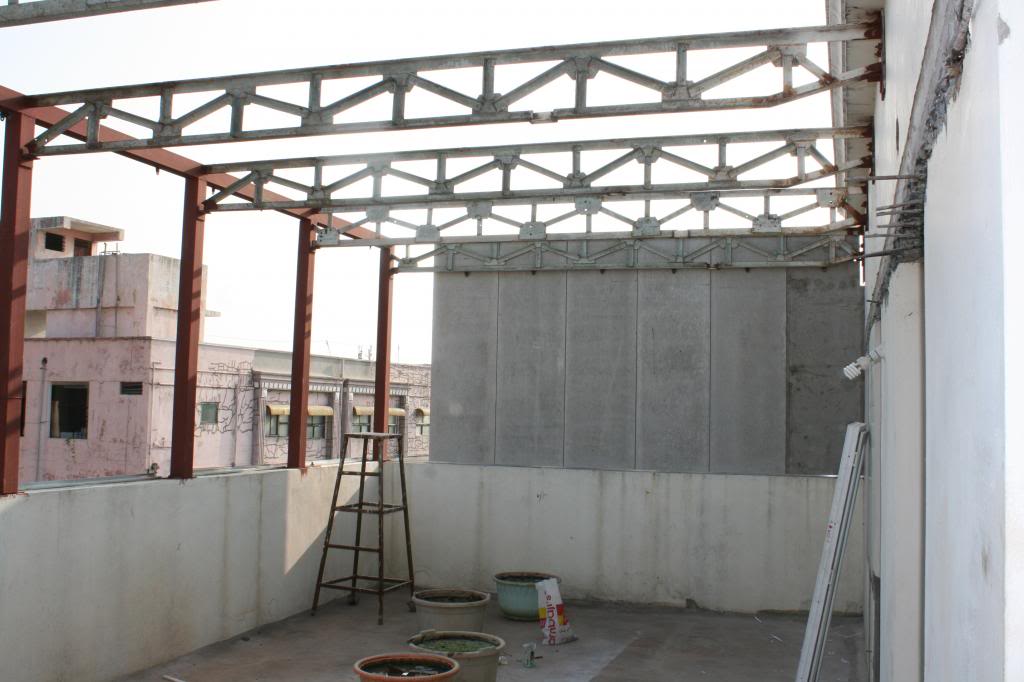

Columns set and trusses on.
-
Attachment: IMG_4969.jpg
(Size: 93.60KB, Downloaded 5513 times)
-
Attachment: IMG_4974.jpg
(Size: 113.71KB, Downloaded 5487 times)
-
Attachment: IMG_4984.jpg
(Size: 122.89KB, Downloaded 5531 times)
-
Attachment: IMG_4986.jpg
(Size: 122.62KB, Downloaded 5520 times)
-
Attachment: IMG_4987.jpg
(Size: 102.44KB, Downloaded 5500 times)
-
Attachment: IMG_4989.jpg
(Size: 108.88KB, Downloaded 5502 times)
-
Attachment: IMG_4992.jpg
(Size: 86.24KB, Downloaded 5527 times)
|
|
|
|
|
|
|
|
| Re: Building a Home Theater & Listening Room [message #81013 is a reply to message #80957] |
Sun, 11 January 2015 04:53  |
|
hydrovac
Messages: 9
Registered: December 2014
Location: Hyderabad
|
Esquire |
|
|
These pics are of the composite decking sheet being fixed.... in fact yesterday...the plasterers were skimming the walls and pouring the concrete slab....
I will add more photos as the work progress.
Started laying electrical, speaker and signal cables. The cabling work is being carried out by a local guy and someone from my work giving him a hand.
To reduce hum and noise I want to install a dedicated line with only a single ground from the audio / home theater system to the electrical service panel. Don't want to attach anything other than the A/ V system to this special dedicated line.
Expecting the result to be noise and hum free power with a 'deep black background'.
By this stage of the project, I have already identified the following:
• Placement of all speakers
• Placement of A/V components
• Placement of video source
• Lighting needs
• Possible future enhancements
• Thermal Insulation & Acoustic Treatment
BTW I have provided a frame also... for supporting the screen.
I will try and post pics if there's interest... as soon as i work out how to do it...!!
I have all the kit I need already for this...mix of new and from old lounge... not top end by any means...but works for me...
HT room exterior view from terrace:
-
Attachment: IMG_5301.jpg
(Size: 97.65KB, Downloaded 5374 times)
-
Attachment: IMG_5303.jpg
(Size: 107.89KB, Downloaded 5407 times)
-
Attachment: IMG_5305.jpg
(Size: 92.52KB, Downloaded 5398 times)
-
Attachment: IMG_5645.jpg
(Size: 77.60KB, Downloaded 5388 times)
-
Attachment: IMG_5646.jpg
(Size: 104.42KB, Downloaded 5362 times)
-
Attachment: IMG_5648.jpg
(Size: 103.63KB, Downloaded 5338 times)
-
Attachment: IMG_5652.jpg
(Size: 78.34KB, Downloaded 5359 times)
|
|
|
|
|
|
|
|
|
|
| Re: Building a Home Theater & Listening Room [message #81065 is a reply to message #81048] |
Thu, 05 February 2015 11:42 |
|
hydrovac
Messages: 9
Registered: December 2014
Location: Hyderabad
|
Esquire |
|
|
Framing work completed and AV cabinet in place.... cabling almost done except one sub signal cable.
Got 20 Rock wool bags delivered yesterday.
There was a leak from one point of the slab joint side.... getting the pressure grouting done today.
Entry door to the theater on the left:
Bags containing Rock wool slabs:
AV cabinet built into the window:
Ceiling panels getting ready:
Insulation panels being fixed:
-
Attachment: IMG_5653.jpg
(Size: 45.82KB, Downloaded 5018 times)
-
Attachment: IMG_5654.jpg
(Size: 69.93KB, Downloaded 5012 times)
-
Attachment: IMG_5655.jpg
(Size: 108.78KB, Downloaded 4998 times)
-
Attachment: IMG_5656.jpg
(Size: 80.18KB, Downloaded 5020 times)
-
Attachment: IMG_5657.jpg
(Size: 56.70KB, Downloaded 5002 times)
-
Attachment: IMG_5734.jpg
(Size: 80.77KB, Downloaded 5011 times)
-
Attachment: IMG_5735.jpg
(Size: 70.09KB, Downloaded 4968 times)
-
Attachment: IMG_5746.jpg
(Size: 103.09KB, Downloaded 5036 times)
-
Attachment: IMG_5749.jpg
(Size: 89.21KB, Downloaded 5021 times)
-
Attachment: IMG_5750.jpg
(Size: 82.79KB, Downloaded 5007 times)
-
Attachment: IMG_5753.jpg
(Size: 101.17KB, Downloaded 5025 times)
|
|
|
|
|
|
