Home » Sponsored » Pi Speakers » My 4 Pi Build
| Re: My 4 Pi Build [message #97053 is a reply to message #96988] |
Tue, 10 October 2023 12:20   |
Unity_Coupled
Messages: 16
Registered: September 2023
|
Chancellor |
|
|
Progress on the build has been pretty slow lately as I've had to prioritize farm and vineyard work, as well as audio repairs for customers. Just a few small updates for now...

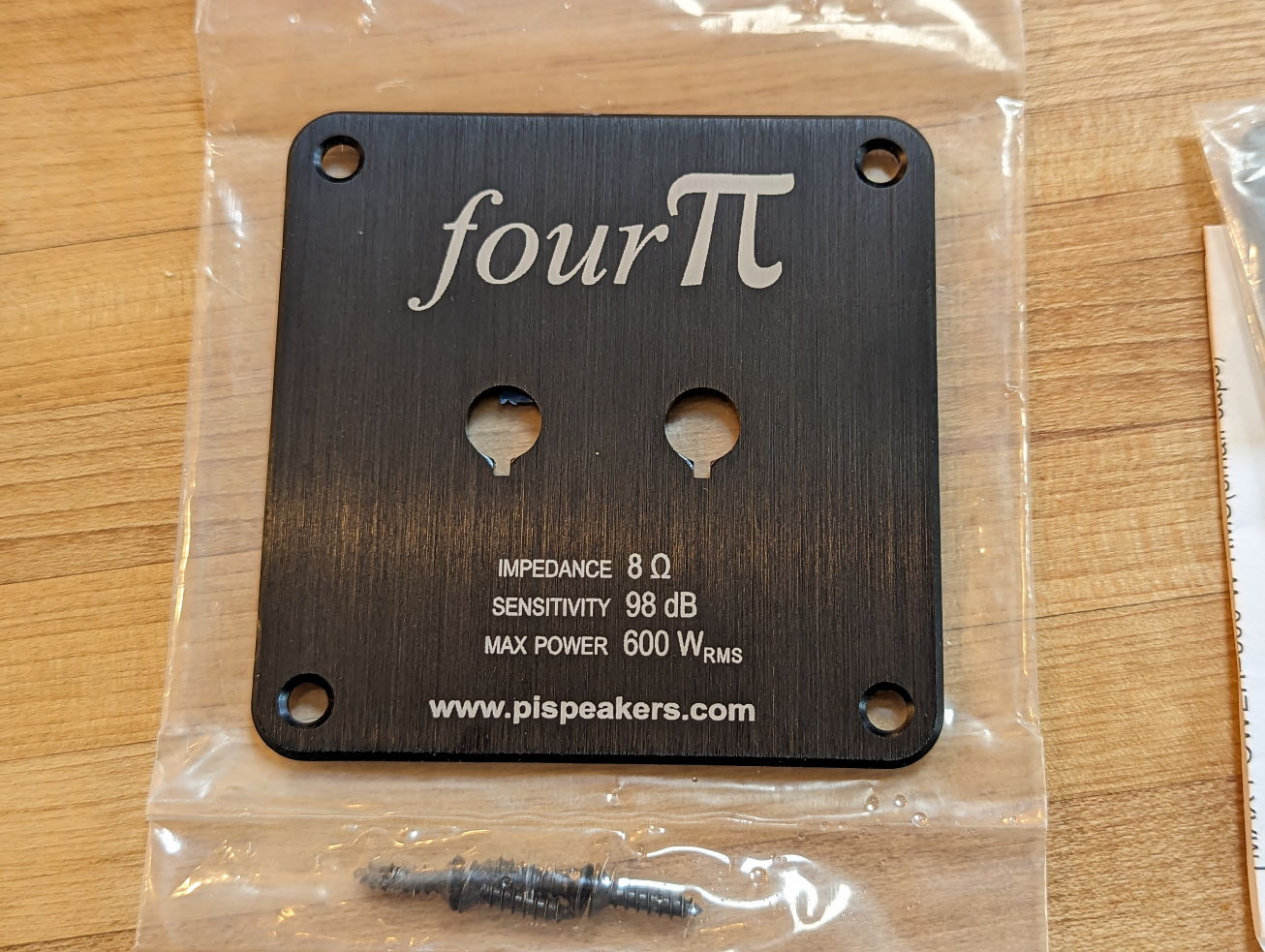

The terminal plates are back after getting laser engraved. I think they turned out nicely. I went with a slightly different design than what I posted above. If anyone wants to copy this, feel free to PM me for a vector file.

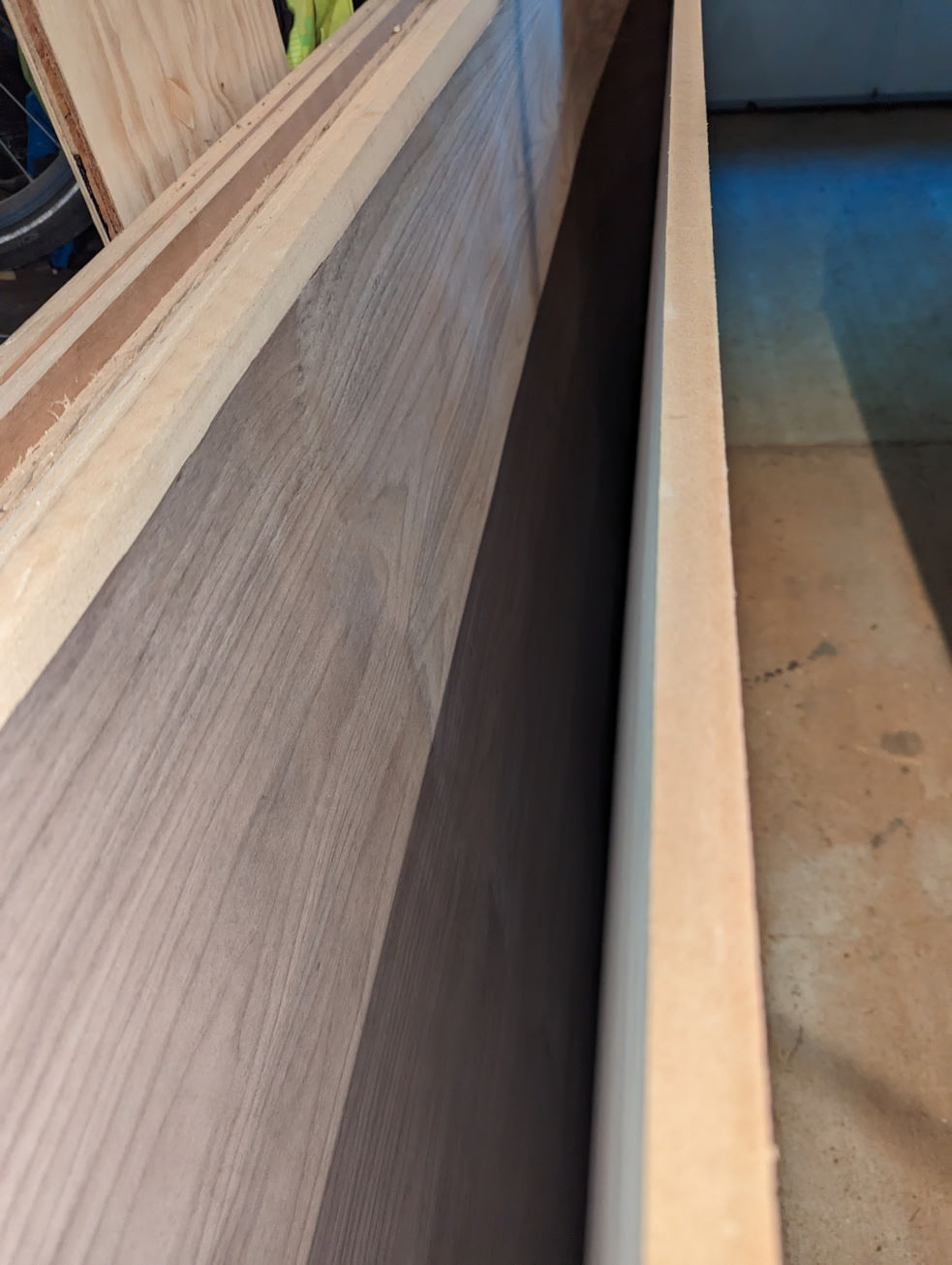

Yesterday I picked up a couple sheets of MDF along with Walnut veneer. I unrolled the veneer sheet and sandwiched it between the fiber boards so it would start to flatten out.
I purchased all the fasteners for the drivers from McMaster. For anyone interested, this is what I ordered:
Woofer
91251A550 Black-Oxide Socket Head Screw, 1/4"-20 x 2"
90975A307 Steel Tee Nut 1/4"-20

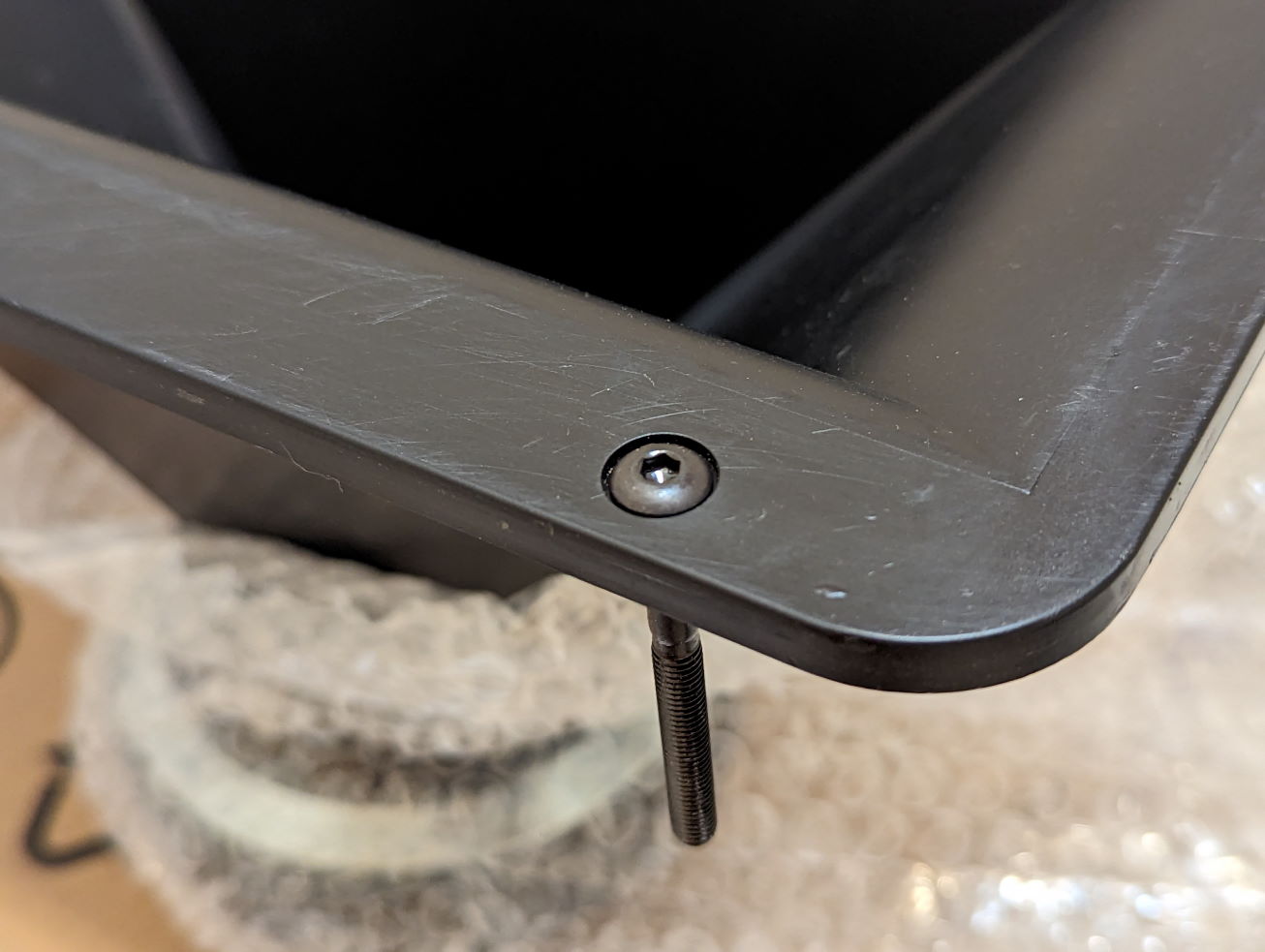

Waveguide
91255A278 Black-Oxide Button Head Hex Screw, 10-32 x 2"
90975A306 Steel Tee Nut 10-32
Crossover boards
94639A342 Nylon Spacer, 5/16" OD, 1/4" Long, for Number 8 Screw Size
That's all for now!
-
Attachment: plate_a.jpg
(Size: 233.68KB, Downloaded 775 times)
-
Attachment: plate_b.jpg
(Size: 225.75KB, Downloaded 772 times)
-
Attachment: ive_got_wood.jpg
(Size: 125.09KB, Downloaded 769 times)
-
Attachment: fasteners.jpg
(Size: 86.61KB, Downloaded 813 times)
-
Attachment: wgscrew.jpg
(Size: 97.69KB, Downloaded 792 times)
|
|
|
|
