Re: My 3π adventure [message #95380 is a reply to message #95364]

Tue, 15 March 2022 12:39

ppkstat
Messages: 38
Registered: February 2022

Baron

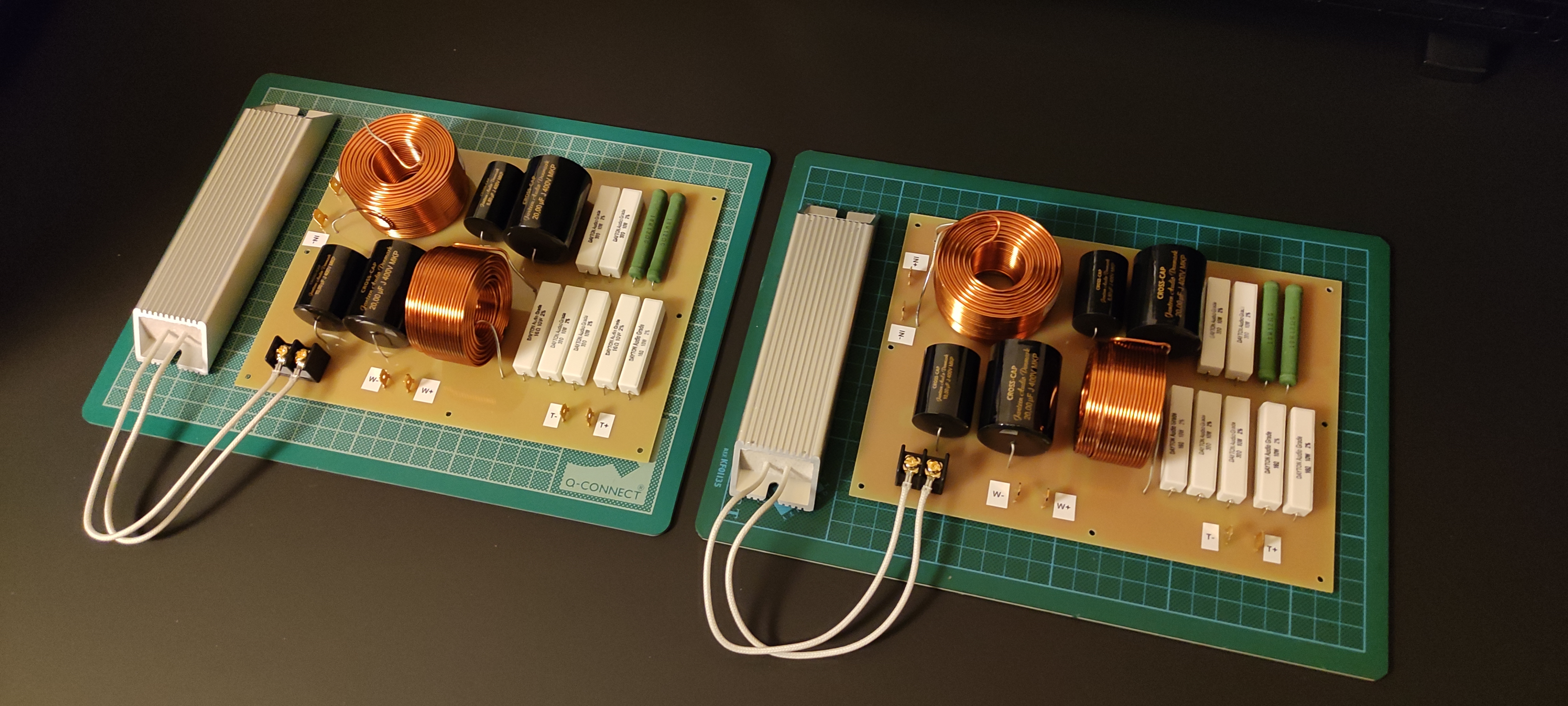

Both crossovers are now ready. They came out great, they're also aesthetically pleasing. Laughing

/forum/index.php?t=getfile&id=3022&private=0

With my limited knowledge I think they're working as supposed to. I connected 2 x 8Ohm 100W resistors (the regular type) across the woofer and tweeter outputs as a dummy load and did some testing. The function of the two boards is practically identical.

I am still surprised at how much the tweeter signal gets attenuated. I understand that this is to compensate for the difference in loudness between the two drivers. When fed with a 2V sine (P-P) at the crossover point (1KHz) I am getting a 1V sine at the woofer output and a 150mV signal from the tweeter! Naturally the tweeter signal increases in greater frequencies.

Attachment: 1647365360083.jpg
(Size: 3.36MB, Downloaded 1198 times)
