Re: Aztec Monet Cabinets [message #94834 is a reply to message #94832]

Thu, 18 November 2021 07:45

two.dogs
Messages: 17
Registered: February 2012

Chancellor

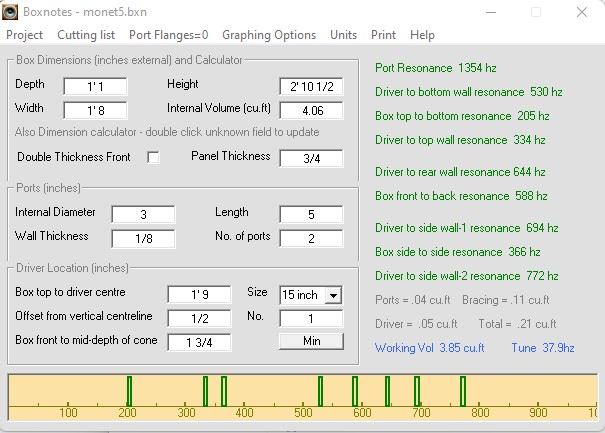

I found free online software called Boxnotes that calculates internal sound reflections to minimize standing waves. The Monets should be about an inch less tall, and a few inches narrower with the woofer offset just slightly. That ensures none of the internal reflections stack up on one another. I'll change the volume with closed cell foam which is easier, lighter, and less reflective than mdf.

/forum/index.php?t=getfile&id=2914&private=0

/forum/index.php?t=getfile&id=2914&private=0

Attachment: boxnotes5.jpg
(Size: 65.66KB, Downloaded 413 times)
