Re: Johnny5's four Pi build [message #81650 is a reply to message #81424] |
Mon, 02 November 2015 14:28 ![Go to previous message Go to previous message](/forum/theme/AudioRoundTable/images/up.png) ![Go to next message Go to previous message](/forum/theme/AudioRoundTable/images/down.png) |
johnnycamp5
Messages: 354 Registered: June 2015 Location: NJ
|
Grand Master |
|
|
I didn't take very many good pictures of the amp build, I pretty much assembled one board at a time, and then photographed them.
It is almost complete now.
I was not very excited on taking many photos to show, because of the crummy, low resolution results I usually get from my i-phone.
Although, looking at the photos uploaded, some look a little better than I thought.

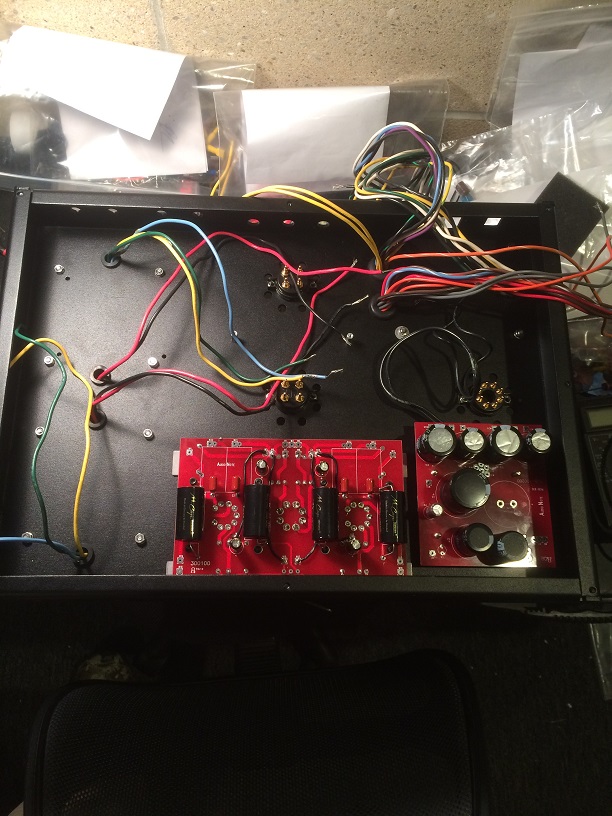

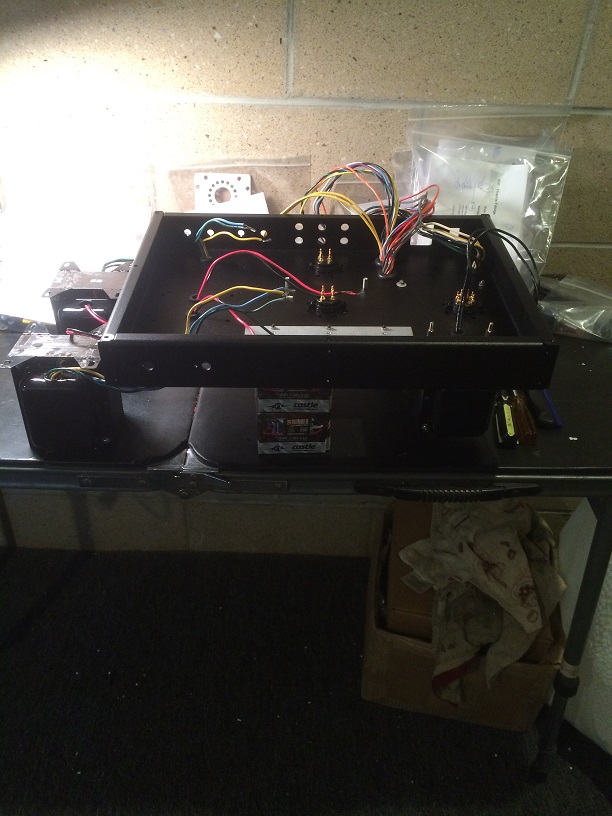

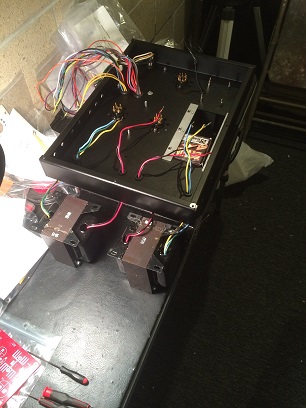

The pics are out of order. The ones with the transformers next to the chassis was at the beginning of the build, where you feed their wires through the rubber grommets of the chassis.
Well.........
-
Attachment: IMG_0499.JPG
(Size: 73.85KB, Downloaded 2116 times)
-
Attachment: IMG_0500.JPG
(Size: 158.64KB, Downloaded 2104 times)
-
Attachment: IMG_0503.JPG
(Size: 198.58KB, Downloaded 2066 times)
-
Attachment: IMG_0504.JPG
(Size: 237.38KB, Downloaded 2097 times)
-
Attachment: IMG_0505.JPG
(Size: 216.19KB, Downloaded 2092 times)
|
|
|
