Re: 4 pi speakers + 3 pi subwoofers, pics & measurements [message #81360 is a reply to message #81359]

Wed, 27 May 2015 16:23

vandevoordekoen
Messages: 18
Registered: January 2013

Chancellor

Disconnecting the tweeter is something for tomorrow or the weekend. I measured the right tweeter (still connected to the crossover) with another mic.

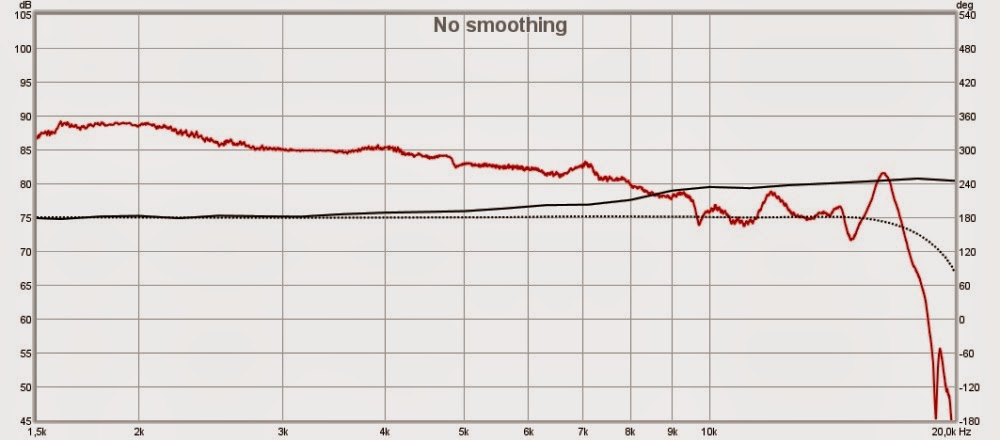

This is the result:

The mic that was used for this measurement isn't perfect, but compared to the measurement with the ecm8000 mic + CAL-file, the same roloff appears...

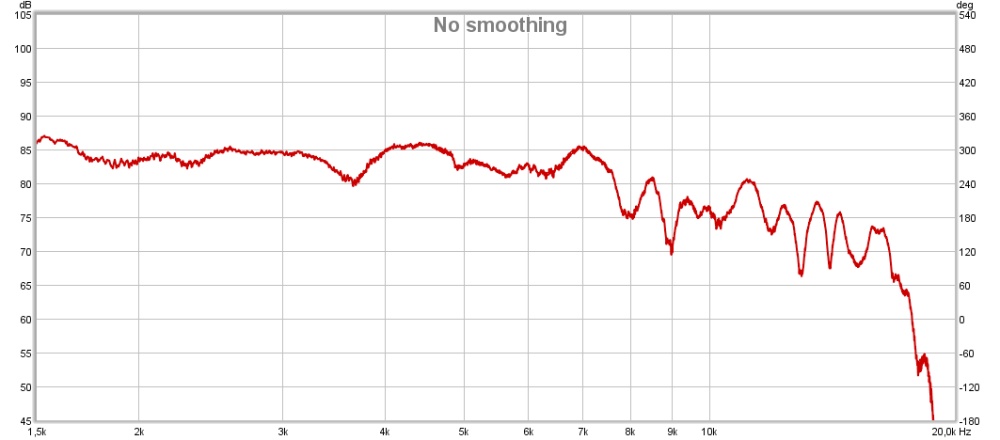

earlier measurement with ecm8000 and CAL-file

I guess measuring the tweeter disconnected will give a better image of the sound. To be continued...

Attachment: tweeter_right_no_cal_file_other_mic.jpg
(Size: 72.52KB, Downloaded 6666 times)
