Re: Another pi midhorn question. [message #80125 is a reply to message #46840]

Sat, 21 June 2014 13:45

Nelson Bass
Messages: 39
Registered: November 2012

Baron

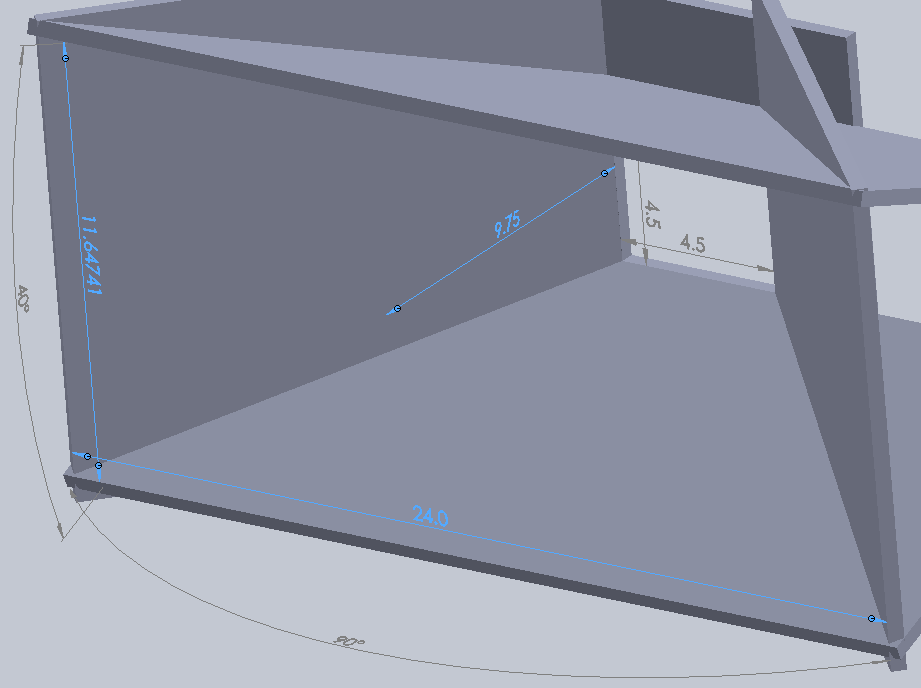

I made a 3D model of the midrange horn in SolidWorks:

I settled the angles at 90x40deg and the horn mouth width to 24".
That makes the mouth around 11.65" high not 12" and the inside depth is 9.75".

Good enough? Razz

Attachment: 7Pi_Midrange_Horn.png
(Size: 36.90KB, Downloaded 5655 times)
