Re: IR Remote Control [message #75093 is a reply to message #72817]

Sun, 30 December 2012 19:50

Wayne Parham
Messages: 18783
Registered: January 2001

Illuminati (33rd Degree)

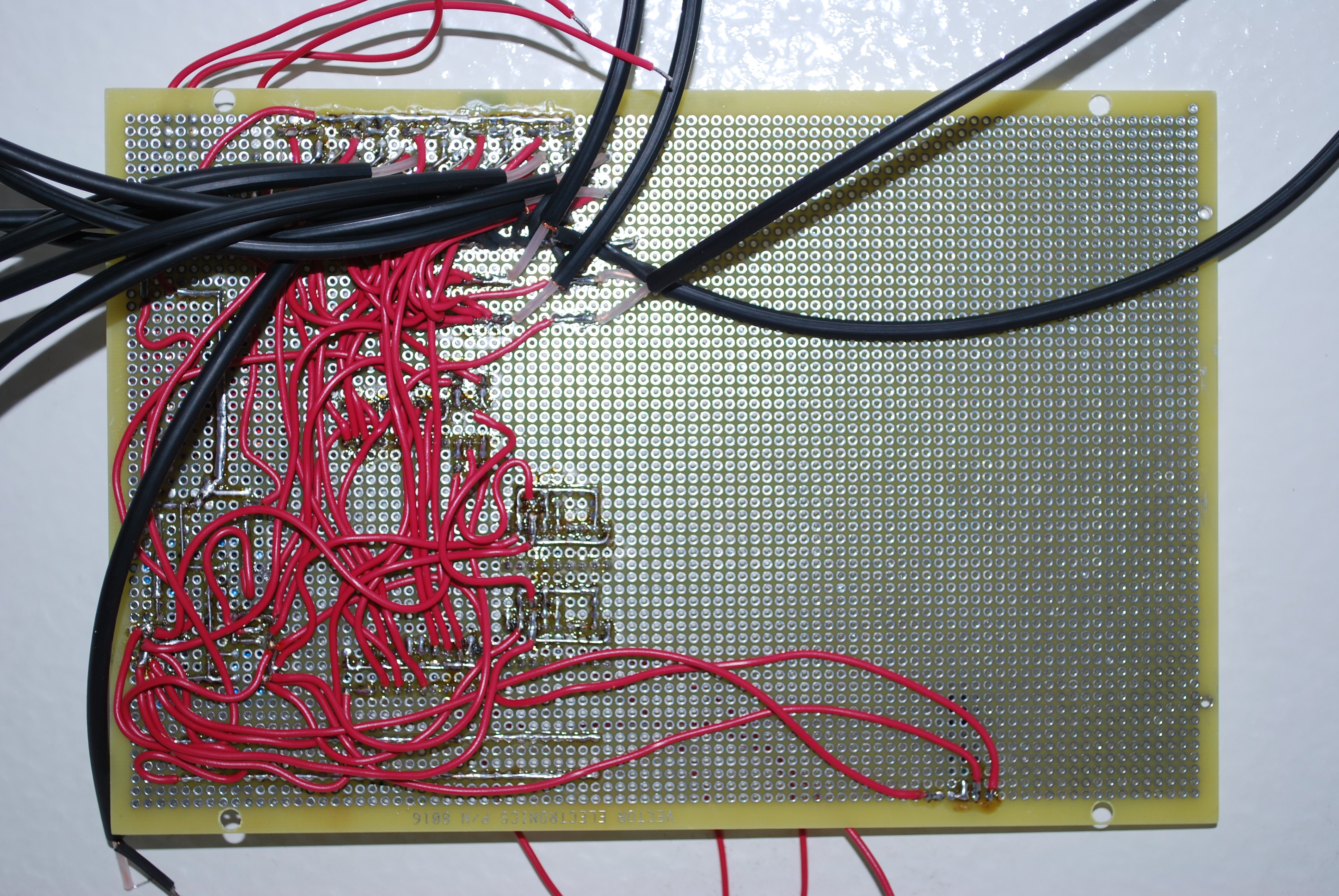

I made a little more progress today. Soldered on all the shielded lines for the RCA connectors. There are five pairs for the inputs, and two pair of switched outputs, one attenuated and one not. The unattenuated line will be used as a pass-through for recorders and the unattenuated line is the output for the amplifier. There are actually two sets of connectors for the attenuated line out, and one for the unattenuated outputs.

Attachment: RDAC_Proto_Board_w_Coax.jpg
(Size: 1.70MB, Downloaded 4890 times)
