| Mid horn driver options [message #82411] |
Tue, 19 April 2016 15:59  |
jgoodd8050
Messages: 28
Registered: February 2010
|
Chancellor |
|
|
|
Has anyone tried JBL's 2123 in the Pi midhorn? The Eminence certainly sounds good but I can't help wondering about the JBL...
|
|
|
|
|
|
|
|
|
|
|
|
| Re: Mid horn driver options [message #85060 is a reply to message #85056] |
Wed, 26 April 2017 12:30  |
 |
Wayne Parham
Messages: 18787
Registered: January 2001
|
Illuminati (33rd Degree) |
|
|
I tested the midhorn with a variety of drivers during development. By "variety" I actually mean "several" - even some that weren't 10" diameter. In fact, I first wanted to use 8" drivers but found none that were satisfactory. None went low enough. So that made me settle on 10" drivers, which provided the passband I wanted.
When choosing drivers for the midhorn, what I watch for is response at the edges of the passband, particularly above 1kHz. This is largely determined by cone shape (including the cap). And even more importantly, this aspect affects the blend with the tweeter waveguide. I am looking for a seamless transition in response and directivity.
Long story short is the two midrange drivers that are tested and approved for use in the constant directivity cornerhorn are the Eminence Delta 10 and the JBL 2012. We're juggling a lot of things here, so it isn't that other drivers aren't very good, just that the "stars don't line up" for use in the system. We are melding the bass bin, midhorn and tweeter not just in response but also directivity.
We want a seamless transition in response as well as uniform directivity without ripple on-axis or off-axis. So while I can nudge some characteristics with the crossover, the midhorn/driver subsystem still has to blend with the other horn/driver subsystems to create a seamless point source. It is not a trivial task. But with the drivers and the corresponding crossover components shown in the plans, the response is nice and flat at all radiating angles, providing uniform response throughout the room.
|
|
|
|
| Re: Mid horn driver options [message #85415 is a reply to message #82411] |
Wed, 14 June 2017 10:42 |
johnnycamp5
Messages: 354
Registered: June 2015
Location: NJ
|
Grand Master |
|
|
"the response is nice and flat at all radiating angles, providing uniform response throughout the room."
I figured as much.
To me, that may be the most important feature of any "in home" (in room) speaker.
I am not surprised with all those combinations of priorities in the horn/speaker design, that it would take "years" (or should I say decades) to design/refine such a loudspeaker.
The reason I ask is, as I love to "diy", I had some TB 1772 full rangers i was trying to possibly horn load, and buid a "FAST" (full range and subwoofer technology) system with.
I wanted to horn load to try to increse sensitivity, and get more gain from them, as I thought they would not play very loud, despite their being rated at 95db/1w/1m, But after reading your explanation, I more realized you cant just plop a fullrange woofer on a horn. LOL!
So i tried it with just direct radiator, which also dramatically decreases the depth of the enclosure compared to a horn-

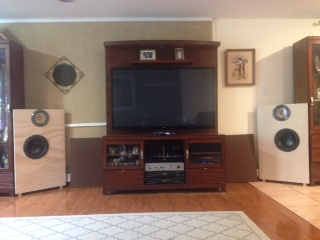

As you can see by the pics, these are not "real corners", otherwise I would have built some 7pi's>
(I wonder how the 7pi's would work in this configuration?).
These are bi-amped.
I had best luck with the Tang bands high passed at 150hz (using a set amp), and the subs low passed at 170hz.(crown amp).
This is where they sound thier best to me, without taking room measurments.
The toe in (approx. 30d.?), although not 45d., does help widen the listening response in the room.
These mains sit about 13' apart. They are set up on the long wall, so the seating area is about 12' back.
As you might guess, the overall volume isn't there like with my 4pi's.
I think their 95db rating may be a bit of embellishment.
I also figure, how can one expect this driver to compare to a nice compression driver?
They are somewhat dynamic sounding, but certainly not like my two ways.
An example Im talking about- high hats sounding like real high hats.!

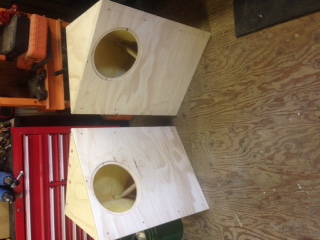

The other boxes in the pics, with no woofers installed, are meant to go on top of the mains, creating a "single bass array" with the woofers being 2' from the ceiling and floor, with 4' vertical between the pair, quarter spacing for an 8' ceiling height.
Also, I never did post pics of my 4pi's with flanking subs-
-
Attachment: IMG_3631.JPG
(Size: 25.18KB, Downloaded 2561 times)
-
Attachment: IMG_3629.JPG
(Size: 30.29KB, Downloaded 2629 times)
-
Attachment: IMG_3632.JPG
(Size: 34.67KB, Downloaded 2612 times)
-
Attachment: IMG_3633.JPG
(Size: 34.68KB, Downloaded 2649 times)
-
Attachment: IMG_3660.JPG
(Size: 30.05KB, Downloaded 2671 times)
|
|
|
|
