Does anyone think this cheesy little crossover might work for incorporating a pair of 3pi (flanking) subs?

http://www.ebay.com/itm/Car-Home-RCA-Adjust-Line-Level-Volume-Amplifier-Subwoofer-Equalizer-Crossover-/390595886970?hash=item5af1543f7a:g:nCMAAOxybi9ReMwR

Its line level, so clearly, one would need to hook this up after the source/before the amp, with typical rca jacks.

It would save the trouble of wiring up an attenuator as it has its own gain control, and also has an adjustable 40hz-150hz low pass (vs. seperate ones) .

I like that its not active, but it seems awful cheap.
I always thought passive crossovers were typically MORE expensive than active ones?

Also very tiny.
Makes you wonder if its really stereo, or the manufacturer mono wired the inside, which would suck for flanking subs.

Report message to a moderator

Re: RCA line level crossover [message #82974 is a reply to message #82971]

Sat, 02 July 2016 15:35

Wayne Parham
Messages: 18787
Registered: January 2001

Illuminati (33rd Degree)

That's a great find. Thanks for posting it!

I'm going to order one and evaluate it. It may very well be perfect for flanking subs.

What I find is often times, cheap little crossovers like that are perfect, because they're not steep filters - which is exactly what we want. The problem sometimes is cheap components. But those can be replaced. So look inside and see if there are cheap electrolytics in the signal path. If you find them, replace them if space permits.

Report message to a moderator

Re: RCA line level crossover [message #82975 is a reply to message #82971]

Sat, 02 July 2016 16:27

johnnycamp5
Messages: 354
Registered: June 2015
Location: NJ

Grand Master

Hey Wayne.

I will definitely check it out inside.

With how small it is, I would be happy to find two separate circuit paths showing it is indeed stereo, and that they did not just sum (and re-split) the signals.

This would not surprise me, especially with car audio.

Report message to a moderator

Re: RCA line level crossover [message #82976 is a reply to message #82975]

Sun, 03 July 2016 12:12

Wayne Parham
Messages: 18787
Registered: January 2001

Illuminati (33rd Degree)

Let us know what you learn please.

I ordered one too, but I seem to always have about ten times more stuff going on than I have time for. So you may be faster on the draw than me. But I'll let you know what I learn too, as time permits.

Report message to a moderator

Re: RCA line level crossover [message #82977 is a reply to message #82971]

Mon, 04 July 2016 08:19

johnnycamp5
Messages: 354
Registered: June 2015
Location: NJ

Grand Master

Will do.

I have the same tendency.
Always trying to fit 10 pounds of material into a 5 pound sack Laughing

Report message to a moderator

Re: RCA line level crossover [message #82992 is a reply to message #82971]

Wed, 13 July 2016 18:40

johnnycamp5
Messages: 354
Registered: June 2015
Location: NJ

Grand Master

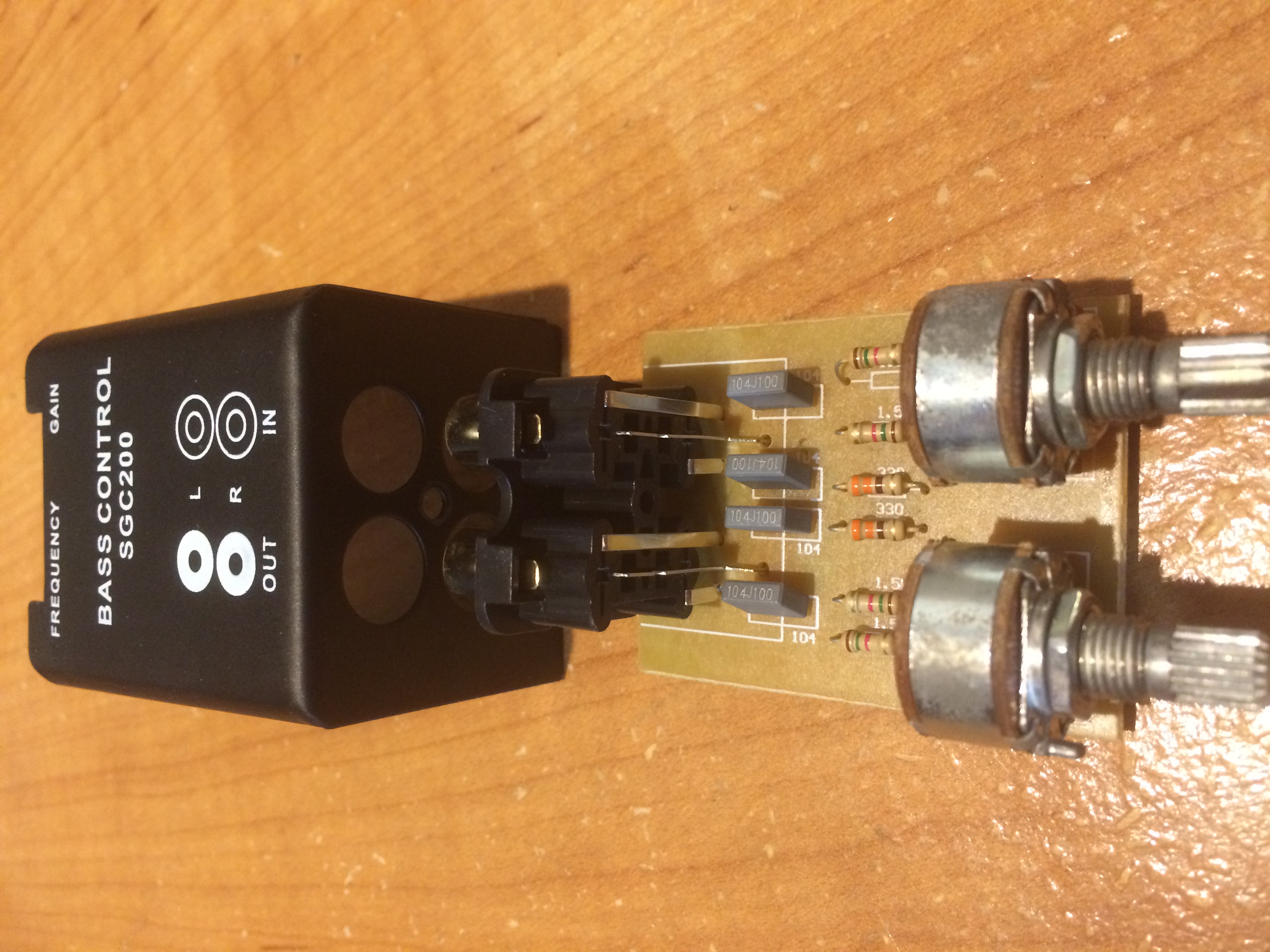

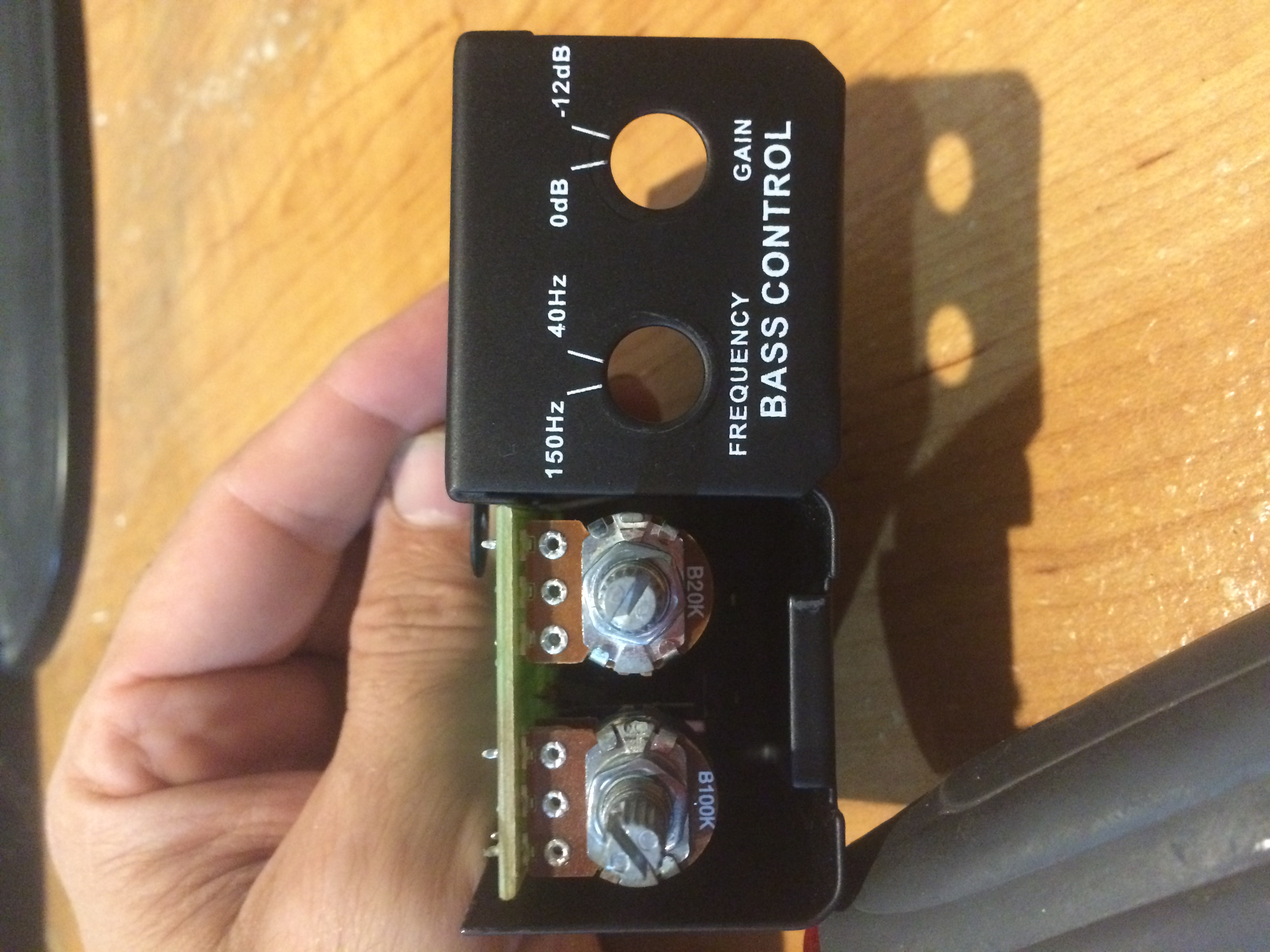

I attached pics, I'm sorry they are so huge.

I got to opening up this little passive crossover, I received it in the mail the other day.

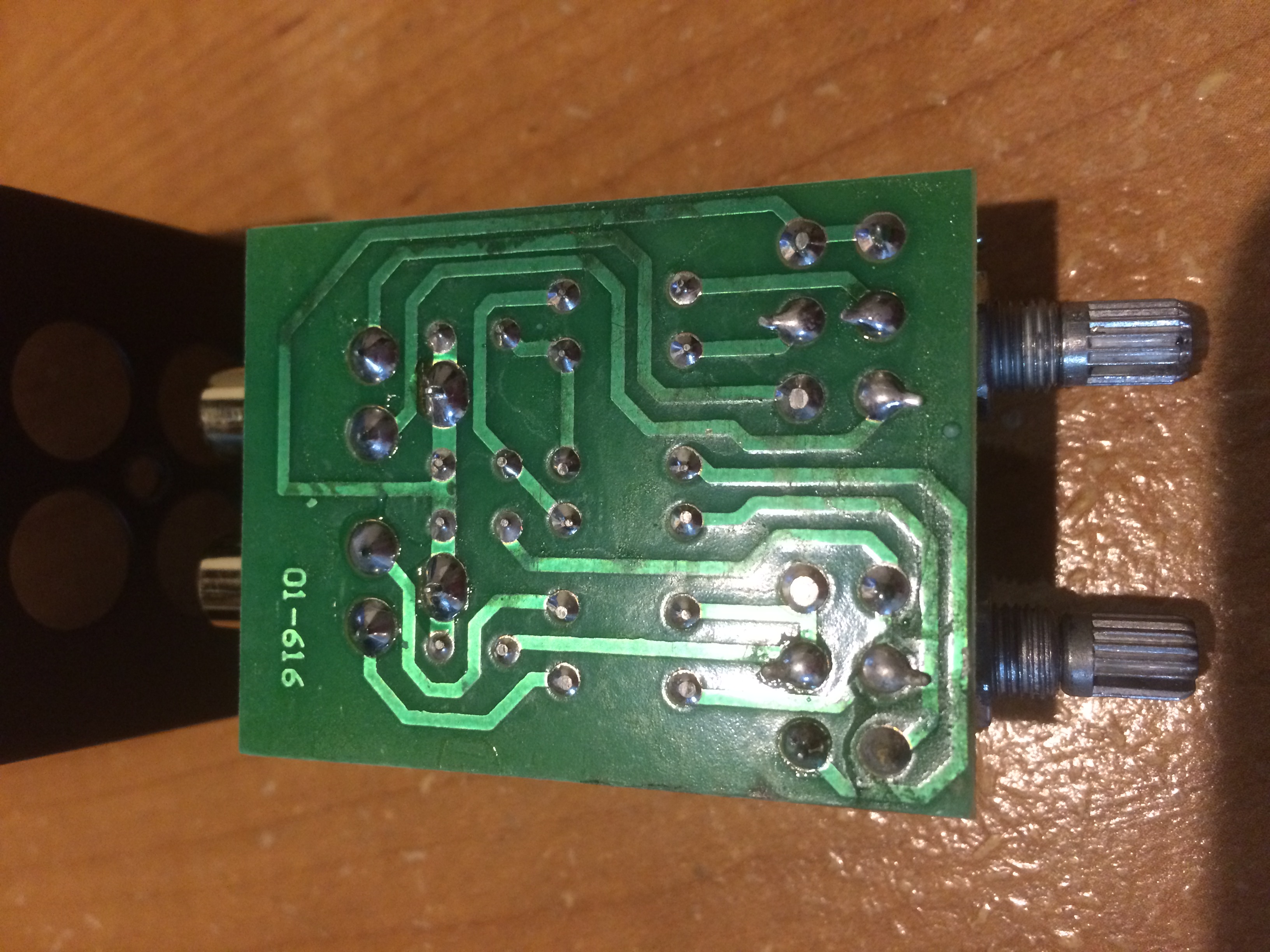

By following the traces on the circuit board,
it does seem to be true stereo, yet I have not confirmed this thru testing yet.

I'm not sure what to make of the components.

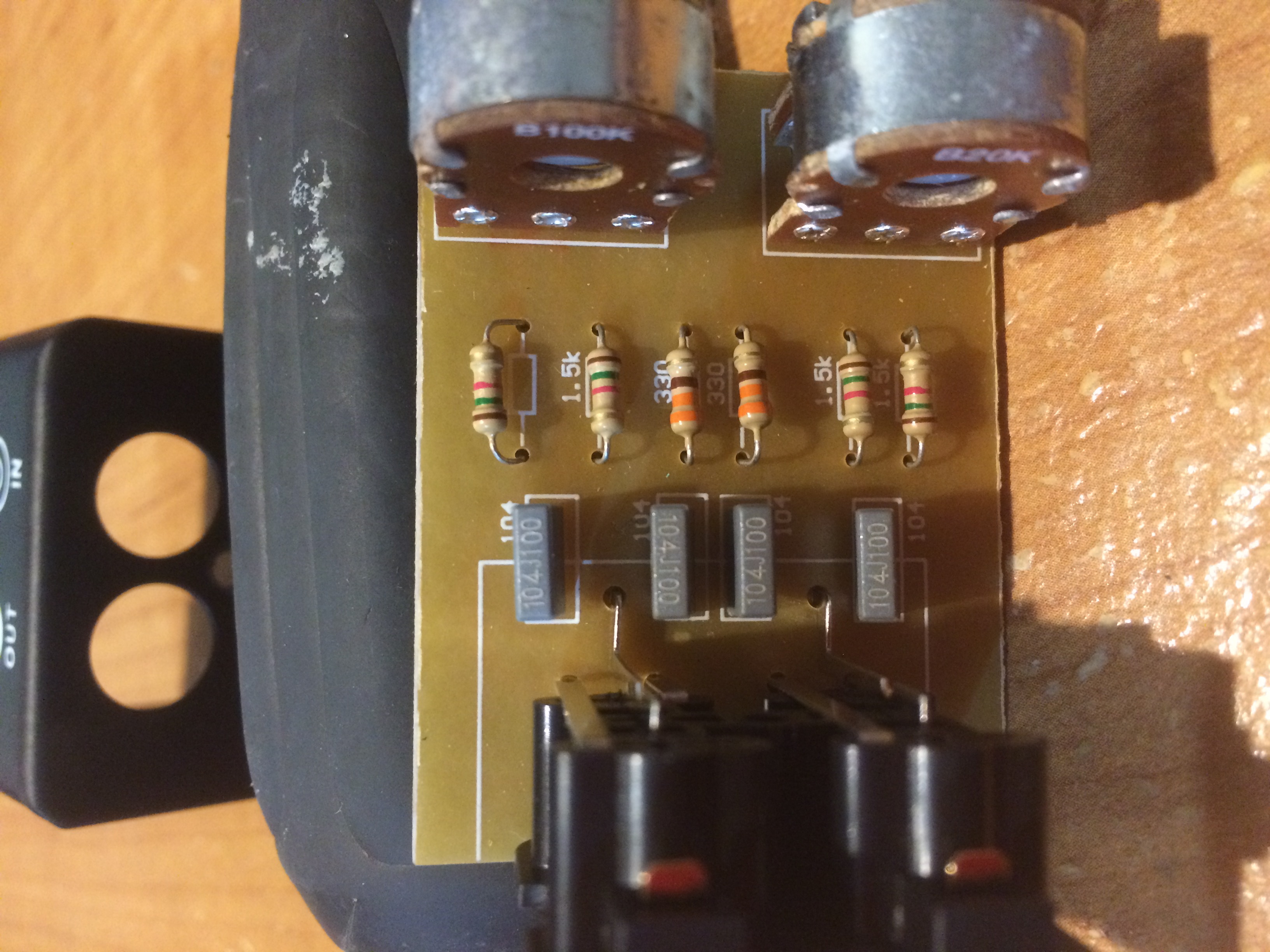

I see six tiny resistors and four square ones?
