| 3 Pi build in Italy... [message #81992] |
Wed, 10 February 2016 07:53  |
porfido1974
Messages: 1
Registered: February 2016
|
Esquire |
|
|
Hi,
First of all, sorry for my bad english...
I opened this thread to tell a REALLY BIG "thank you very much!!!" to Wayne!
These are the second couple of Pi Speakers I built and I couldn't be more satisfied and happy about them!
Of course my skills are far from good and the result is also...

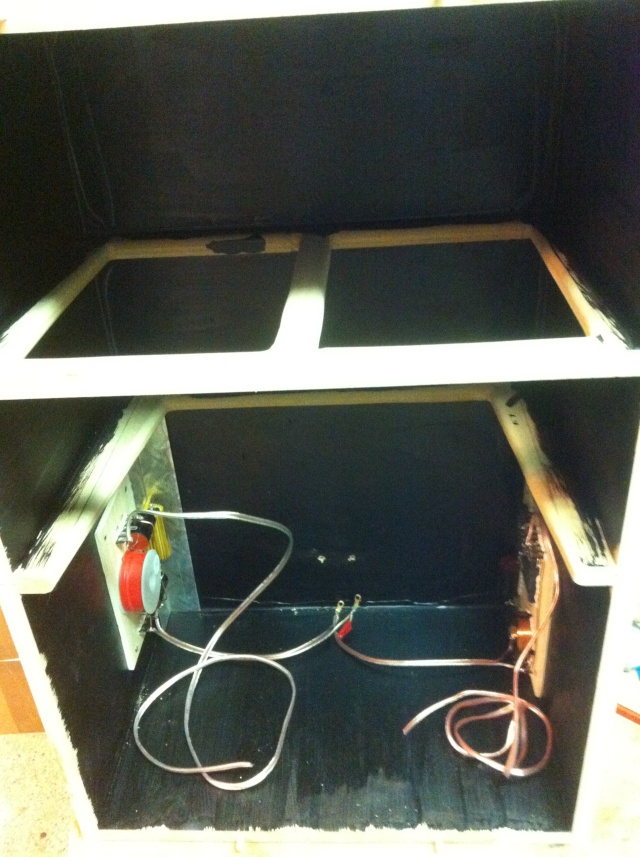

I used 1" mdf for front and rear and added a brace...
Painted the inside with many coats of waterproofing compound...
Built separate filters...

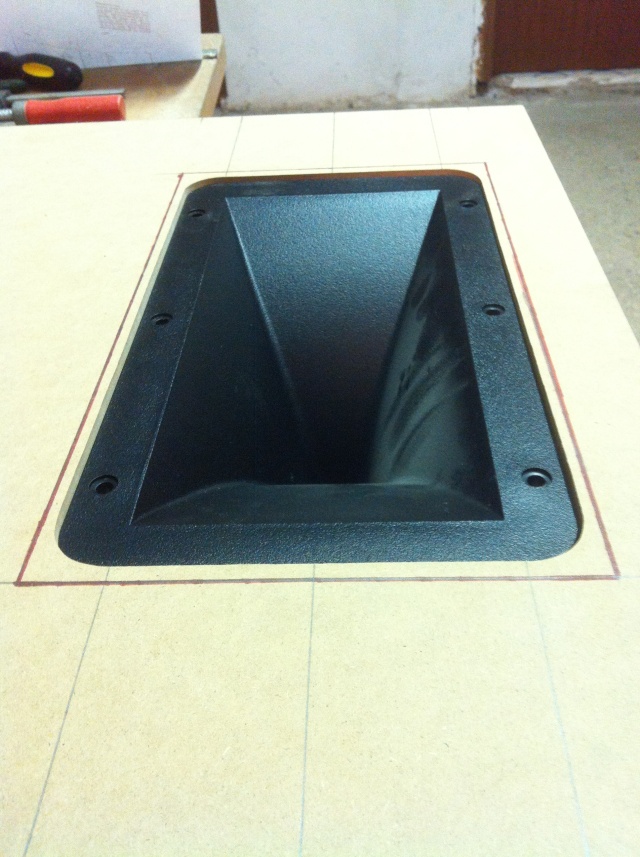

Made the horn recesses following this very good tutorial:
http://www.exquisiteaudio.com/baffle.html
Iron washers and putty for attaching the grills by magnets...

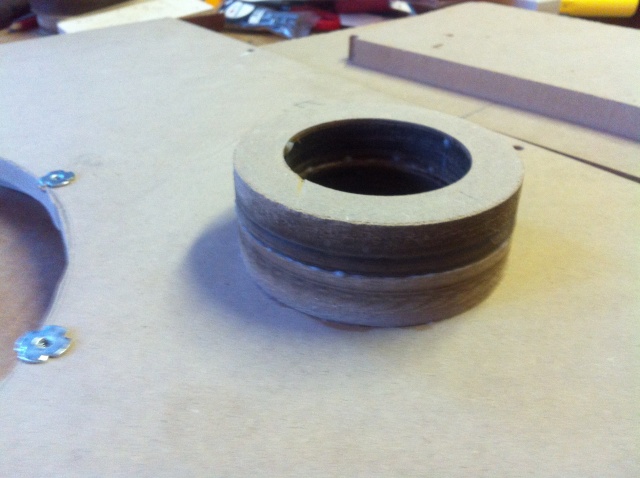

Reflex ducts made by some mdf rings glued together...
Primer...
Varnex paint by roller...
Rubber feet...
Drivers mounted...

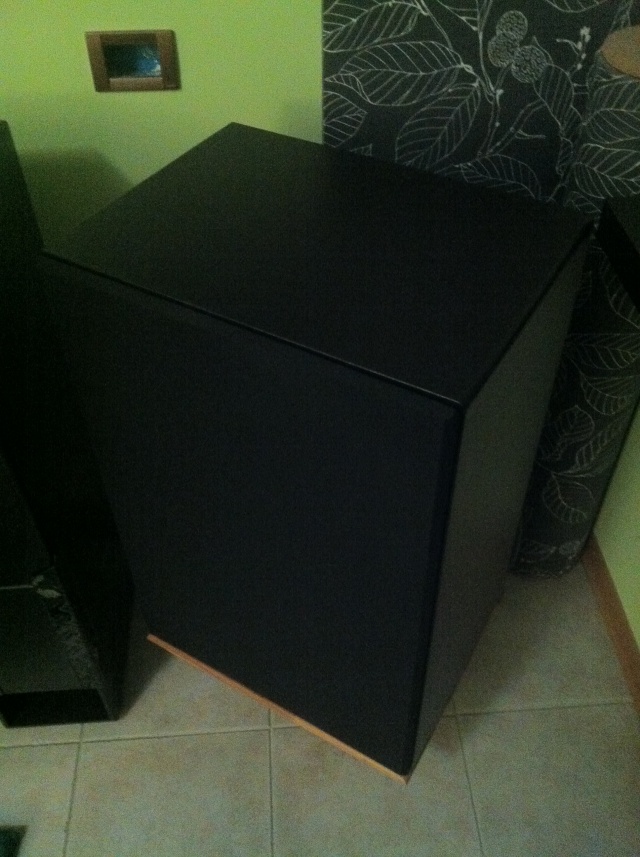

Grills attached...
Ok and "How do they sound?"...
So good I keep smiling and smiling listening to them...
THANK YOU VERY MUCH AGAIN, WAYNE!!!!
-
