I just received my 4pi parts and have a few questions.
Since I'm not using the standard cabinet I'm trying to figure out the displacement of the H290C.
I also picked up the 4pi crossovers. I haven't soldered boards like these, having only worked on through hole boards. Do I lay the components leads on top of the traces and solder away? Thanks!

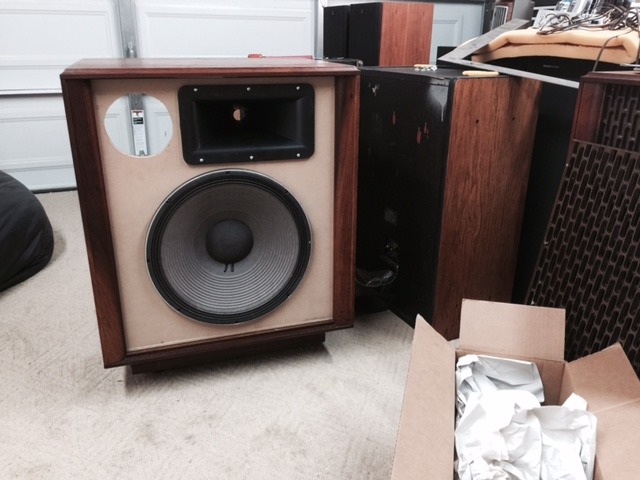

Here's a pic of my Barzilay 4pi's. They will be a mirrored stereo pair.
Wayne Parham Messages: 18791 Registered: January 2001
Illuminati (33rd Degree)
The volume displaced by the H290C when mounted in the cabinet is approximately 65 cubic inches.
The crossover has no plate-through holes because I wanted one side to be perfectly flat so it could sit on a gasket and mount directly to the cabinet. Mount the components on the solder side and fasten the coils with a silicon adhesive. It acts as both a mount and a cushion for them. Mount the capacitors and resistors so that they sit a little bit above the board, supported by their leads.
