4 Pi Baffle Information [message #66456]

Thu, 03 March 2011 09:03

NWCgrad
Messages: 143
Registered: March 2010
Location: Frederick, United States ...

Master

I am finally back on track to build speakers (I lost a year being assigned 450 miles from my family - geographical bachelor in navy terms).

I plan to start constructing the cabinets, two vented and one sealed, soon. I have a question on recessing the horn and woofer. The JBL 2226H datasheet indicates an overall diameter of 15 17/64". The plans call for a cutout of 13 15/16". What depth and diameter is recommended for the JBL recess for it to set flush with the cabinet?

I have a similar question for the horn, the Eminence website states for the H290 a cut out of 10.3" L x 4.9" H (vice 9.5" L x 4.75" H per the plans), with overall dimensions of 11.4" L x 6.5" H.

I am having the cabinets cut via a CNC so need to be able to provide exact information. I am moving to Cambodia this summer and need them completed before I leave.

I plan on building the cabinets before I order the kit from Wayne (otherwise I may get lazy and live with unfinished cabinets). Cabinets will be built of Baltic birch and veneered in either oak or cherry.

Thanks for assisting!

VIRIBUS MARI VICTORIA

Report message to a moderator

Re: 4 Pi Baffle Information [message #66457 is a reply to message #66456]

Thu, 03 March 2011 10:48

Wayne Parham
Messages: 18787
Registered: January 2001

Illuminati (33rd Degree)

The cutout dimensions shown in the plans are right. So use those. As for the routing depth, I can't say by memory - it's around 3/8" - but I'll measure it later this evening.

Report message to a moderator

Re: 4 Pi Baffle Information [message #66458 is a reply to message #66457]

Thu, 03 March 2011 10:56

NWCgrad
Messages: 143
Registered: March 2010
Location: Frederick, United States ...

Master

Thanks Wayne, I was planning on going with the cutouts from your plans. I would not trust spec sheet info over the plans of the speaker designer.

Are the outer dimensions correct? I am thinking that if the recess is to large or to deep the speakers will look crappy.

VIRIBUS MARI VICTORIA

Report message to a moderator

Re: 4 Pi Baffle Information [message #66460 is a reply to message #66458]

Thu, 03 March 2011 11:11

Wayne Parham
Messages: 18787
Registered: January 2001

Illuminati (33rd Degree)

The outer dimensions are correct for the woofer, but the horn is sometimes a bit snug when routed using Eminence's dimensions. I'm not sure if there's a little bit of variance from horn to horn but I know I've had trouble there. If the cabinet is unfinished, obviously it can be re-routed but I've had some cabinets delivered finished and then when I went to install the horn, it was anywhere from 1/32" to as much as 1/8" too large. Seems more often that it is too wide than too tall. In a couple cases, rather than re-do a cabinet that was finished with an expensive polished laquer coat I had the horn planed to remove some of the edge. Turned out great, so don't be overly alarmed, but it was frustrating to find the horn didn't fit and have to take extra steps to correct it.

Report message to a moderator

Re: 4 Pi Baffle Information [message #66462 is a reply to message #66460]

Thu, 03 March 2011 11:33

NWCgrad
Messages: 143
Registered: March 2010
Location: Frederick, United States ...

Master

Thank you for the information. Once I have the depth of the recess I will be ready to go.

Can't wait to get rolling on this project, it has been in the works for well over a year.

-SWN

VIRIBUS MARI VICTORIA

Report message to a moderator

Re: 4 Pi Baffle Information [message #66475 is a reply to message #66462]

Thu, 03 March 2011 18:17

Wayne Parham
Messages: 18787
Registered: January 2001

Illuminati (33rd Degree)

The routing depth for the H290 is 3/8" and the depth for the 2226 is 5/8". However, I'd go 1/16" more to give room for a gasket. The O-Ring that comes with the 2226 is neat, but I prefer cutting my own gaskets from PVC. You can get it at any hardware store as shower pan material.

We glue a ring of wood behind the routed groove to give it added thickness and strength.

http://www.pispeakers.com/Basshorn/Cutting_Gasket.jpg

Report message to a moderator

Re: 4 Pi Baffle Information [message #66479 is a reply to message #66475]

Thu, 03 March 2011 21:20

NWCgrad
Messages: 143
Registered: March 2010
Location: Frederick, United States ...

Master

Thank you for the information. I am having the CNC shop make a double thick front baffle (1.5"), the depth of the cabinet will be increased from 14.25" to 15.5" to compensate. All internal dimensions should be nearly the same as the original plans (the extra 0.25" of internal volume will be taken up 1.5" x 1.5" rails along the top and bottom to assist with assembly and structural integrity). Since the speakers will be shipped to Cambodia in August, I wanted the structure to be stronger than normal to survive military moves.

I cannot wait to listen to the final product. Trying to determine the intitial playlist now, I know it will include Pink Floyd, Edgar Winter, Black Sabbath, Mozart and Coltrane.

VIRIBUS MARI VICTORIA

Report message to a moderator

Re: 4 Pi Baffle Information [message #77044 is a reply to message #66475]

Wed, 19 June 2013 12:23

Nelson Bass
Messages: 39
Registered: November 2012

Baron

Hi Wayne,

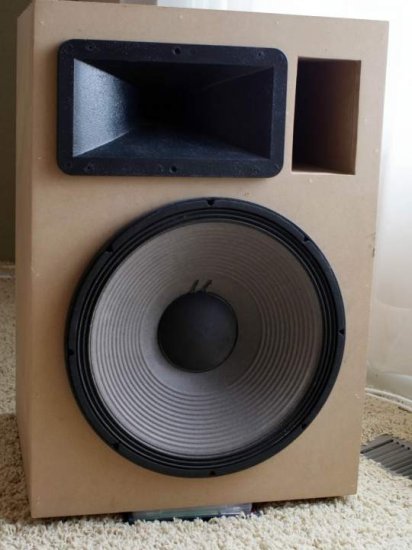

My H290 horns are closer to 1/4" in thickness than 3/8" and I will just mount it directly on the front panel (not recessed).

I intend to do the same with the 2226 but compared to flush mounted horn and bass driver this will cause the voice coils to be 3/8" misaligned to each other. Go or no go?

Will it be better to flush mount the horn and the bass driver or is it enough to recess the bass driver 3/8"?

Report message to a moderator

Re: 4 Pi Baffle Information [message #77045 is a reply to message #77044]

Wed, 19 June 2013 13:09

Wayne Parham
Messages: 18787
Registered: January 2001

Illuminati (33rd Degree)

Oh, that's perfect. The 1/8" difference shifts the forward lobe less than 1°. But if you use a gasket, you probably should go 3/8" if you want the horn to be flush with the baffle.
