Re: 4pi's on the way! [message #76906 is a reply to message #76706]

Sat, 01 June 2013 18:21

Ash R
Messages: 12
Registered: April 2013

Chancellor

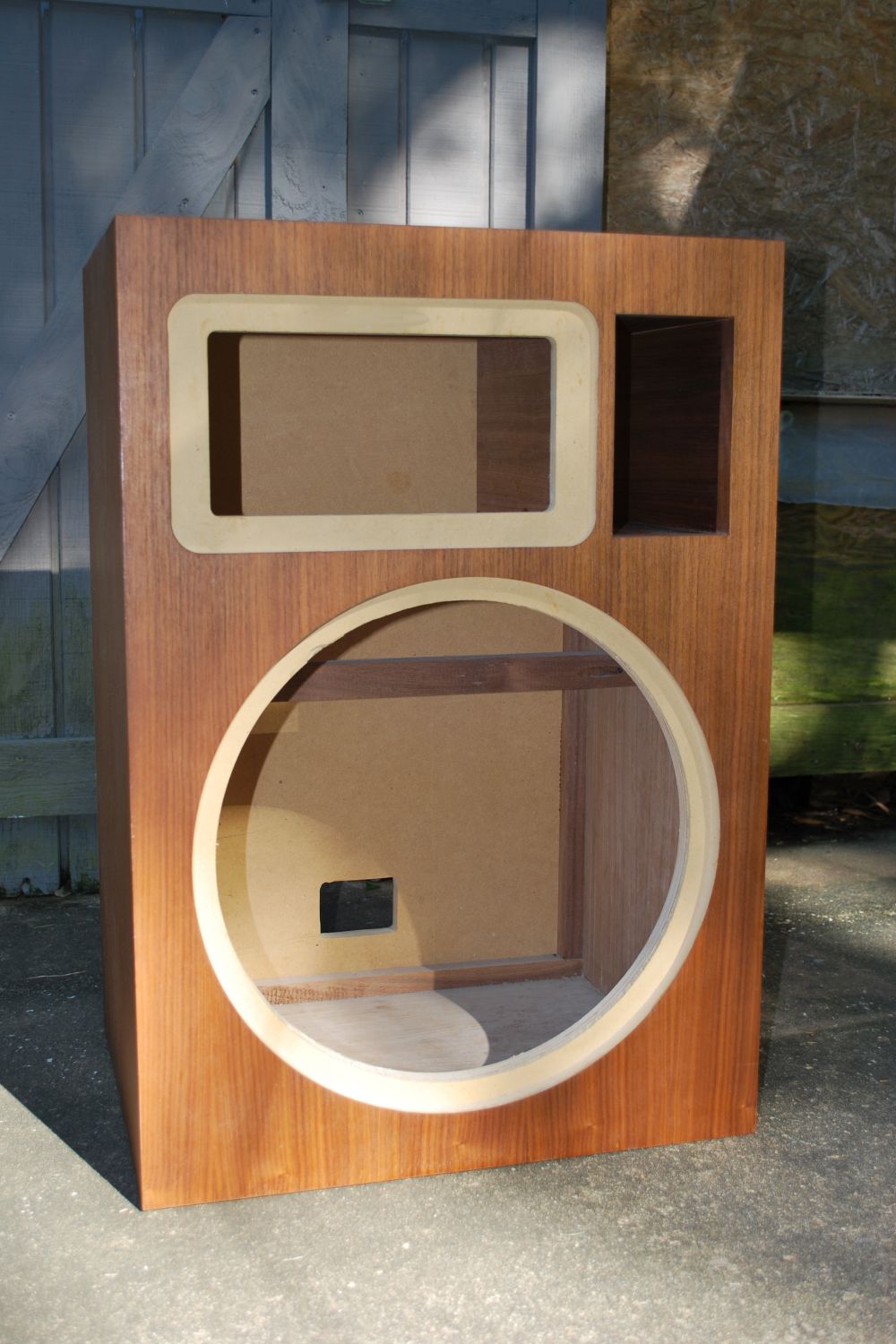

My woodworker sent a snapshot of his progress =>

I am so pleased to be finally getting these done. They are the real deal, often imitated but never duplicated. Razz

Attachment: 4pi.cabinet.jpg
(Size: 176.01KB, Downloaded 2837 times)

Report message to a moderator

Re: 4pi's on the way! [message #76910 is a reply to message #76906]

Sun, 02 June 2013 01:19

Nelson Bass
Messages: 39
Registered: November 2012

Baron

Looks stunning good!

The bracing attached to the sides is that a third one additional to the original design?

See this thread: http://audioroundtable.com/forum/index.php?t=msg&&th=15168&goto=63679#msg_63679

Report message to a moderator

Re: 4pi's on the way! [message #76911 is a reply to message #76910]

Sun, 02 June 2013 01:30

Wayne Parham
Messages: 18786
Registered: January 2001

Illuminati (33rd Degree)

It does look a little lower than most people put it, but as long as the front-back brace is in there between woofer and tweeter and the side-to-side brace doesn't interfere with the woofer, it's fine. Just make sure to install the cross-section damping material between woofer and tweeter.

Report message to a moderator

Re: 4pi's on the way! [message #76912 is a reply to message #76911]

Sun, 02 June 2013 09:15

Ash R
Messages: 12
Registered: April 2013

Chancellor

Didn't Scott contact you about the braces? He asked me about them and I told him to email you directly.

Report message to a moderator

Re: 4pi's on the way! [message #76918 is a reply to message #76912]

Sun, 02 June 2013 20:59

Wayne Parham
Messages: 18786
Registered: January 2001

Illuminati (33rd Degree)

Yes, Scott wrote to me asking if the front/back brace needed to be connected to the side/side brace. I replied essentially the same thing I wrote in my last post, that they could be separated a little bit, provided there was no interference with the woofer or tweeter and the sheet of insulation spanning the cross-section could be easily installed and supported by the brace.
