Re: 4 PI by Andy [message #76375 is a reply to message #76368]

Thu, 18 April 2013 19:55

mantha3
Messages: 72
Registered: May 2012
Location: Lino Lakes, MN

Viscount

I used Marine Grade Okoume on the build like my 4PI. This is basically good baltic birch type void free wood.. Nice Mahogany veneer... I suck at veneer... I have two layers of 3/4" for the face..

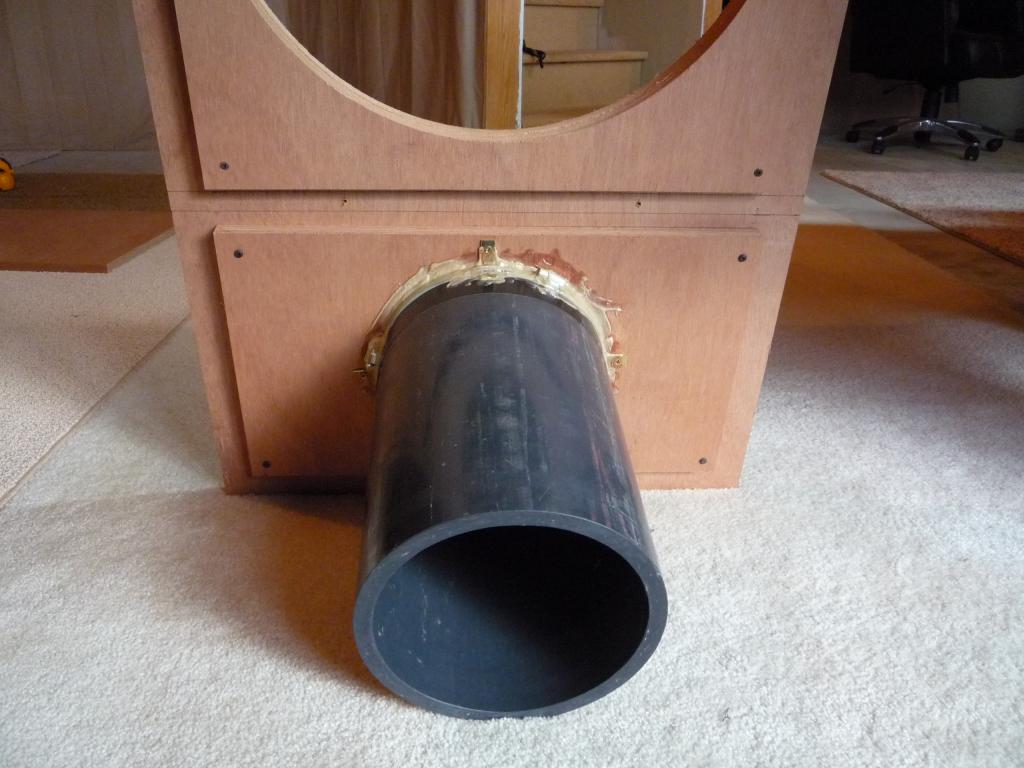

The face I cut the port smaller then the actual port... Then ran a flush cut router so the actual hole of the wood is perfect with the port as the port drove the flush cut router bit. The port was put into a recessed hole on the back of the baffle.. Then I ran some L brackets and some worm gear HVAC brackets.. Covered all in some PL adhesive.. Strong to hold that fat 10lb port

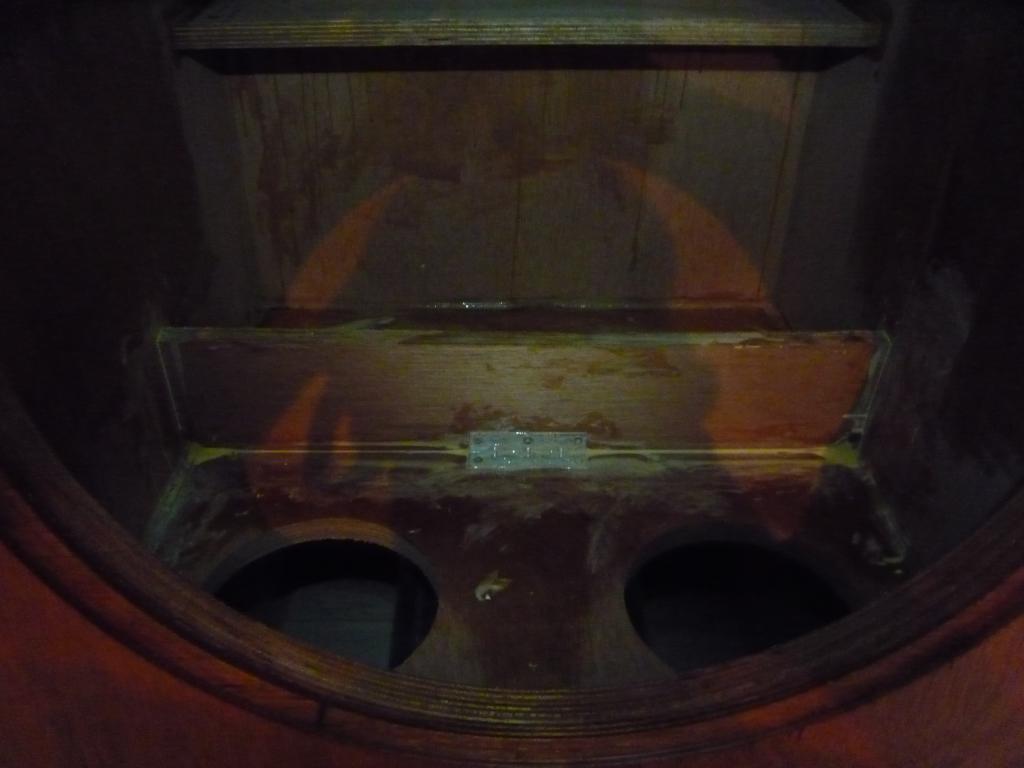

Before Braces:

Braces:

Attachment: sub1.jpg
(Size: 88.67KB, Downloaded 5431 times)
Attachment: sub2.jpg
(Size: 63.58KB, Downloaded 5253 times)
Attachment: sub3.jpg
(Size: 101.17KB, Downloaded 5259 times)
Attachment: sub4.jpg
(Size: 82.39KB, Downloaded 5405 times)
Attachment: sub5.jpg
(Size: 47.88KB, Downloaded 5231 times)
Attachment: sub6.jpg
(Size: 105.79KB, Downloaded 5384 times)
