| Skywave's 3 Pi Build [message #75543] |
Sat, 16 February 2013 17:08  |
skywave-rider
Messages: 104
Registered: May 2009
|
Viscount |
|
|

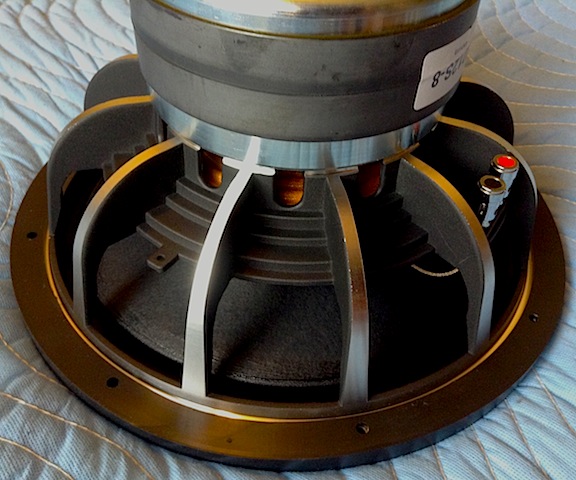

Finally got my AE TD12S woofers.

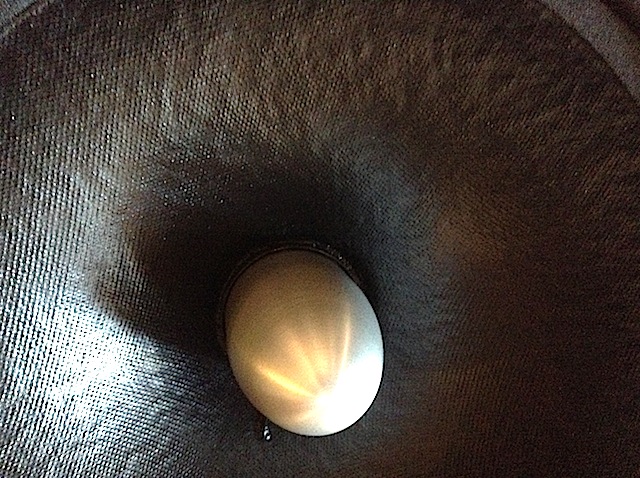

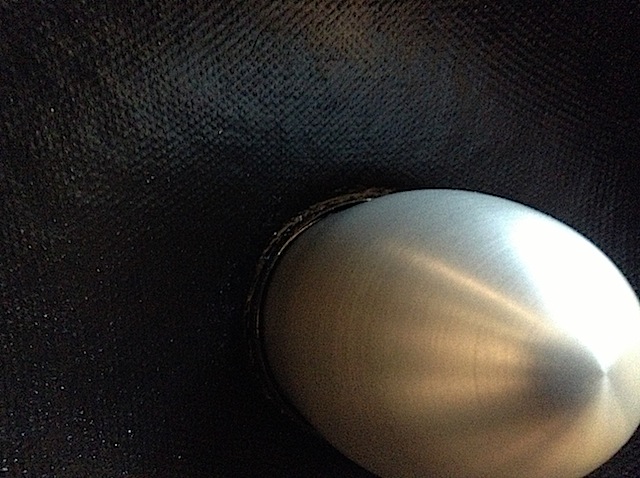

I have a few questions. First, there is an inconsistency in the circular cutout of the cone surrounding the phase plug. I tried to get it clear in pics, but it looks worse in real life. Is this OK? I assume that as long as it doesn't rub, and is close enough to the phase plug, I am OK. However I never had woofers like this and, like I said, it looks worse in person.
Secondly, Wayne, would you kindly send the latest 3Pi schematic?
Assuming all goes well, I will do a temporary setup in smallish trap cabs (PE, sealed,) to check it out. I have moved the baffles forward on those and I think the volume is about 2 cu ft.
Thanks.
-
Attachment: 4photo.JPG
(Size: 93.44KB, Downloaded 5420 times)
-
Attachment: 3photo.JPG
(Size: 89.42KB, Downloaded 5414 times)
-
Attachment: 1photo.JPG
(Size: 153.92KB, Downloaded 5415 times)
-
Attachment: 2photo.JPG
(Size: 107.59KB, Downloaded 5347 times)
|
|
|
|
