gofar99 Messages: 1947 Registered: May 2010 Location: Southern Arizona
Illuminati (5th Degree)
Hi Everyone, A sort of interest survey. Both as a diy project and commercial kits. I'm finalizing a design for mini mono blocks using EL84s much like half a Poddwatt. The initial design is really going to be cute, but these will be top performers. Similar power output (about 5 watts RMS each) and having an input level control that can be defeated. They could be used as monaural amplifiers. EL84s in push-pull ultra linear class A with an ECC803S driver (SRPP like in the Poddwatt).
Wayne Parham Messages: 18783 Registered: January 2001
Illuminati (33rd Degree)
Oooh, sounds like a great entry level kit. Personally, I think this is an important price point for kit offerings. Sure, we want higher-end stuff too, but the entry level gear is lacking, in my opinion, and you could bring a quality option for this market position.
gofar99 Messages: 1947 Registered: May 2010 Location: Southern Arizona
Illuminati (5th Degree)

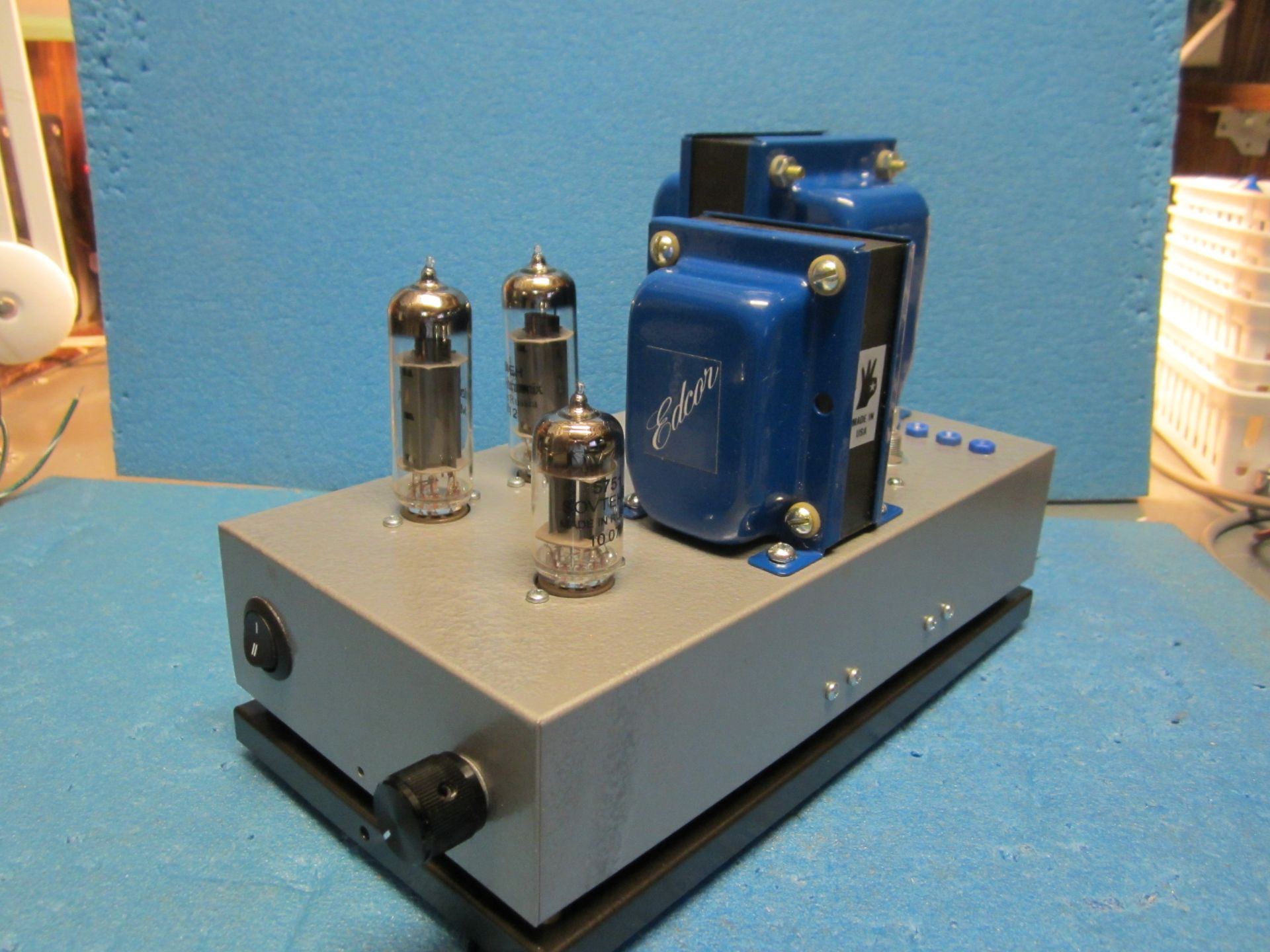

Hi Everyone. I have a pair now of prototype mini-blocks. They are actually an upgraded version of the Poddwatt (that is about to go into series II). Sam power transformer as the Poddwatt in the prototypes and the newly designed Edcor output trannies. Lots of audio grade caps (Jantzen)in the PS. Regulated B+ on the SRPP driver, regulated heater reference voltage. Output is 5.8 watts each and response (flat to below 10HZ and out to 50K), S/N (88-90 dbw) and distortion (below 0.25% at 1 watt)are excellent. I would guess they are about 6 months before initial sales. No price yet as we are still sourcing parts.
gofar99 Messages: 1947 Registered: May 2010 Location: Southern Arizona
Illuminati (5th Degree)
Hi Wayne, thanks for the kind remarks. Based on what everything presently costs and the upgrades..... probably about $400 per kit and if it becomes an assembled item figure about $100 ish more. These are giant killer amps.... my OB120s are gathering dust at the moment.
Wayne Parham Messages: 18783 Registered: January 2001
Illuminati (33rd Degree)
Wow, that's amazing. Whenever they're ready, I'll have to get a couple kits. I've been meaning to jump in, but have some many irons in the fire that I haven't. But sometimes you just gotta jump. So count me in for a couple when they're ready.
rockdrummer Messages: 2 Registered: October 2012 Location: Minnesota
Esquire
I'm very interested. I was eventually planning on the Poddwatt. But always drifting towards monoblocks and the possible mini monos sound like a great way for me to get both. I plan on using them with GR research speakers that are rated at 97db efficiency. I know the 5 watts will be enough for them.
I like everything down to the layout. I prefer a narrow chassis because of where they will sit in my room!
I see they are looking to be available around Feb-March according to earlier posts. Can't wait.
I need to familiarize myself with what the specs mean. I don't really know what distortion means for me.
Flat to 10 hz? holy crap! Is that normal?
Thanks for the info guys. I check up on oddwatt audio's website regularly. Will there be a tease up shortly? Or do you plan to wait until you can ship?
gofar99 Messages: 1947 Registered: May 2010 Location: Southern Arizona
Illuminati (5th Degree)
Hi, These little amps are IMHO one of the best things I have ever cooked up. The project on building your own was just posted this week on diyaudioprojects.com
The response figures is typical of all the Oddwatts. I take special care to be sure they go past both ends of the audio band. I have a number of things I want out of each design (power amp, preamp, phono stage etc) Low noise, I want -90db all the time. Wide bandwidth 10HZ to 25K typically although several go way past that on the top end. Low distortion, 1% or less at typical use levels and 2% max at whatever I rate the full power - even if it can do more. Simplicity whenever possible, no frills, no extra complications. Low or no negative feedback. Low cost to duplicate when possible as well although this is not always possible as I use whatever components I feel do the job the best. Not always the most costly. A good example is the use of solid state power supplies. I can make them really clean and they are IMHO more cost effective than tube PS.
rockdrummer Messages: 2 Registered: October 2012 Location: Minnesota
Esquire
Awesome little performer, I see.
Thanks so much for the information. I won't be able to tackle anything that isn't a Kit. I'm so new and not ready to completely build my own. Although I would like to someday. Thats very far down the road though.
Maybe I will get it worked out to get the oddblocks. I would love some monos.
gofar99 Messages: 1947 Registered: May 2010 Location: Southern Arizona
Illuminati (5th Degree)
Hi Everyone, An update. Initially the minis will be delayed.. .. but a dual mono version of the Poddwatt is coming . Two of everything on a single chassis. The channels will share a power switch, input selector switch and dual gang volume control. Otherwise they will be complete separate amps (including power transformers). Identical performance to the minis is expected. Chassis and PCB are now being fabricated and the major components for the initial batch are enroute. Not likely in time for Christmas, but a good bet for early spring.
