| Re: 4pi speaker instructions [message #72707 is a reply to message #72705] |
Sun, 13 May 2012 12:04   |
Bill Epstein
Messages: 1088
Registered: May 2009
Location: Smoky Mts. USA
|
Illuminati (2nd Degree) |
|
|
Are you hung up on the port? I was at first, and I've seen other queries on it? If so, here's help.
A closer look at the plans will show that it's just a box 3 1/2" x 6" x 10" internal that gets glued to the inside of the baffle. Make the horn cut-out first, then you will discover that the side of the box is just a fraction away from the side of the cabinet. It needs to be close so I just shimmed it away from the side about 1/4" IIRC and glued it in place, square to the horn cut-out. After 24 hours for the glue to dry, I drilled a hole large enough for my flush trim bit to pass through and routed the opening with the port as it's own guide. A little clean-up work with a file and it's done. Simple!
Other than that, the 4Pi is just a box, although the bracing Wayne likes to use is, for me, a little troublesome. I can't seem to cut to size after assembly. So what I do is make extra pieces cut the same time as the tops and bottoms, cut out most of the internal material, and use'm as "window pane" braces. They also aid in a nice, square, glue-up.

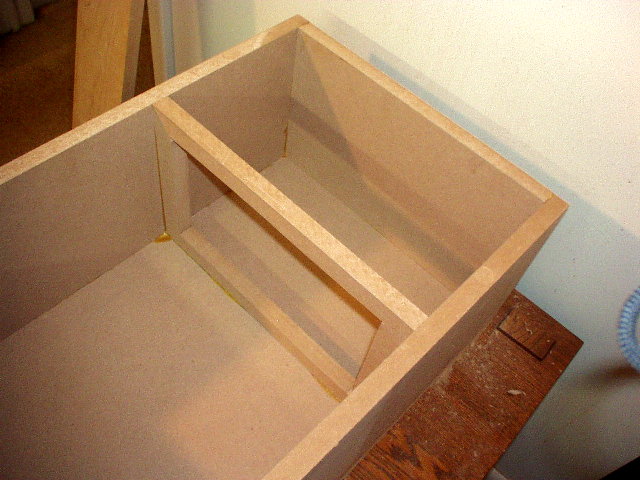

In the second, 4Pi pic, you'll see a brace which is like what Wayne uses which is under a "window pane" brace you can't see. The woofer cut-out occupies so much of the baffle, I couldn't place a second "window" as I would usually do.
Hope this helps.
|
|
|
|
| Re: 4pi speaker instructions [message #72708 is a reply to message #72705] |
Sun, 13 May 2012 13:16 |
blacklabel0730
Messages: 27
Registered: May 2012
Location: United States
|
Chancellor |
|
|
|
Thank you Wayne for your willingness to answer any questions. Bill, thanks for the pictures. I have talked to a cabinet maker and am going to have the boxes made. The last thing I would want, would be to have to redo them due to my/my dad's inexperience with wood working. Funny because we have both fully restored muscle cars, and he used to be a crew chief for an injected alcohol dragster but these 4pi boxes are making us rethink the build. I guess without the right tools things become very difficult, very quickly.
|
|
|
|
