Integrated Preamplifier [message #71016]

Tue, 17 January 2012 13:48

gofar99
Messages: 1932
Registered: May 2010
Location: Southern Arizona

Illuminati (5th Degree)

Hi Everyone, My latest creation an integrated tube preamplifier. It uses only tubes in the active circuitry but has a digital remote control volume (resistor switched by relays) and source selection. Full phono preamp (like the Groove) and allows for passive or active line stage with a gain of 15 db. Still breaking in, but sounds lovely. Smile

It is not a simple project, although a good diyer could do it. Care in layout and wiring technique is important. I'll post a schematic when I get one cleaned up. BTW the PS uses 1500uf of 500VDC caps, heaters another 15,000 more and about 30uf of polys. Rolling Eyes

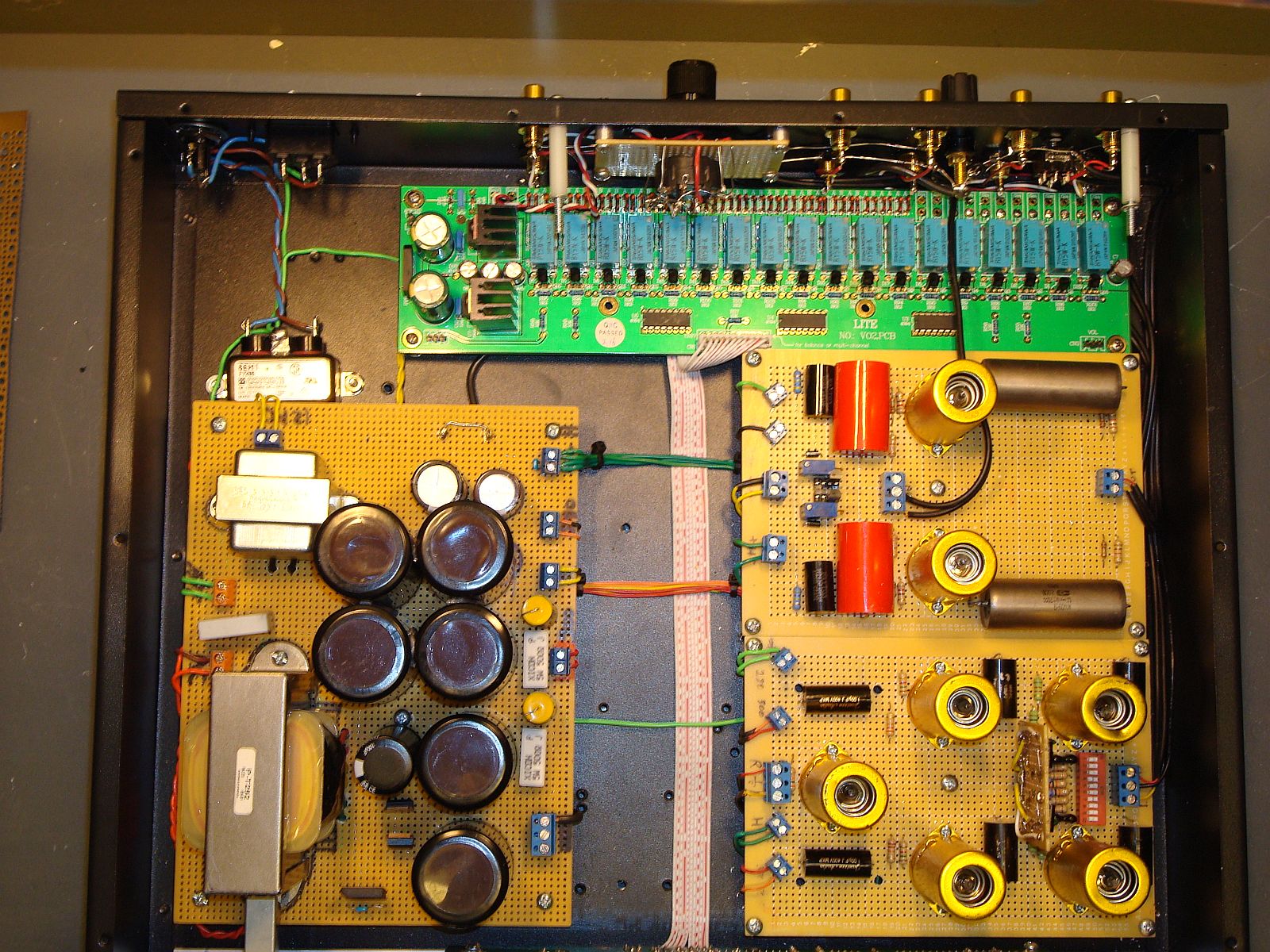

Attachment: Pre inside no covers view 2.jpg
(Size: 494.98KB, Downloaded 2607 times)
Attachment: Pre inisde with covers.jpg
(Size: 551.23KB, Downloaded 2625 times)
Attachment: Pre In system.jpg
(Size: 190.73KB, Downloaded 2610 times)

Good Listening
Bruce
