Good Speaker Bad Speaker [message #66316]

Fri, 25 February 2011 15:05

AudioFred
Messages: 377
Registered: May 2009
Location: Houston

Illuminati (1st Degree)

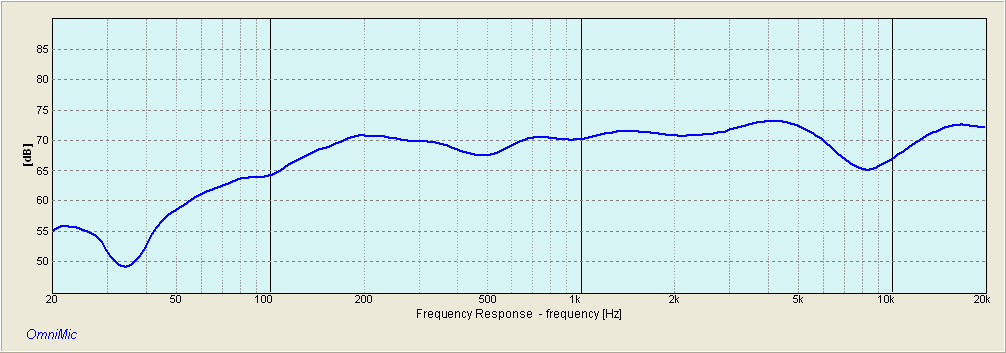

Here'a the OmniMic results of measuring my Selah Audio Texas Revelator Towers, and then the infmous $25 Parts Express speakers, both in the same position with the mike placed one meter away on the tweeter axis, 1/3 octave smoothing. First the TRT:

index.php?t=getfile&id=325&private=0

Attachment: TRT.bmp
(Size: 1.35MB, Downloaded 6218 times)

Report message to a moderator

Re: Good Speaker Bad Speaker [message #66317 is a reply to message #66316]

Fri, 25 February 2011 15:07

AudioFred
Messages: 377
Registered: May 2009
Location: Houston

Illuminati (1st Degree)

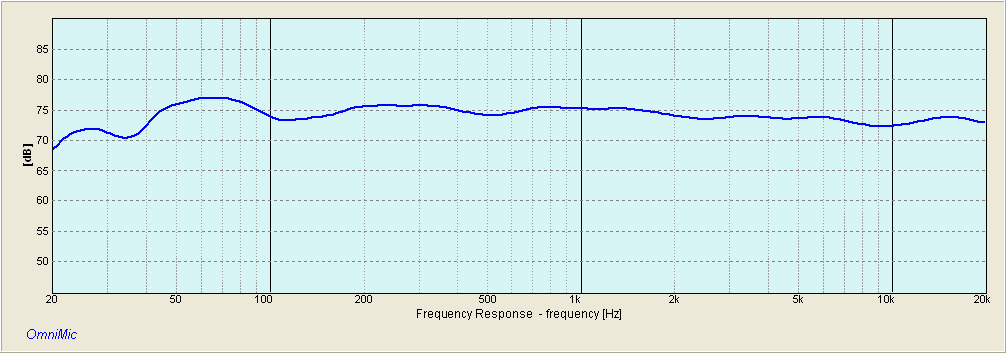

And now the Parts Express Dayton Audio B-652:

index.php?t=getfile&id=326&private=0

Attachment: Dayton B652.bmp
(Size: 1.35MB, Downloaded 5652 times)

Report message to a moderator

Re: Good Speaker Bad Speaker [message #66318 is a reply to message #66316]

Fri, 25 February 2011 15:16

AudioFred
Messages: 377
Registered: May 2009
Location: Houston

Illuminati (1st Degree)

I understand the OmniMic system doesn't have all the features of some of the more popular measurement systems, but it's as plug & play as you can get.

http://www.parts-express.com/pe/showdetl.cfm?Partnumber=390-790&FTR=omni%20mic%20measurement%20system
