Another pi midhorn question. [message #46839]

Sat, 07 May 2005 02:56

Kim Schultz
Messages: 85
Registered: May 2009

Viscount

Hi Wayne.

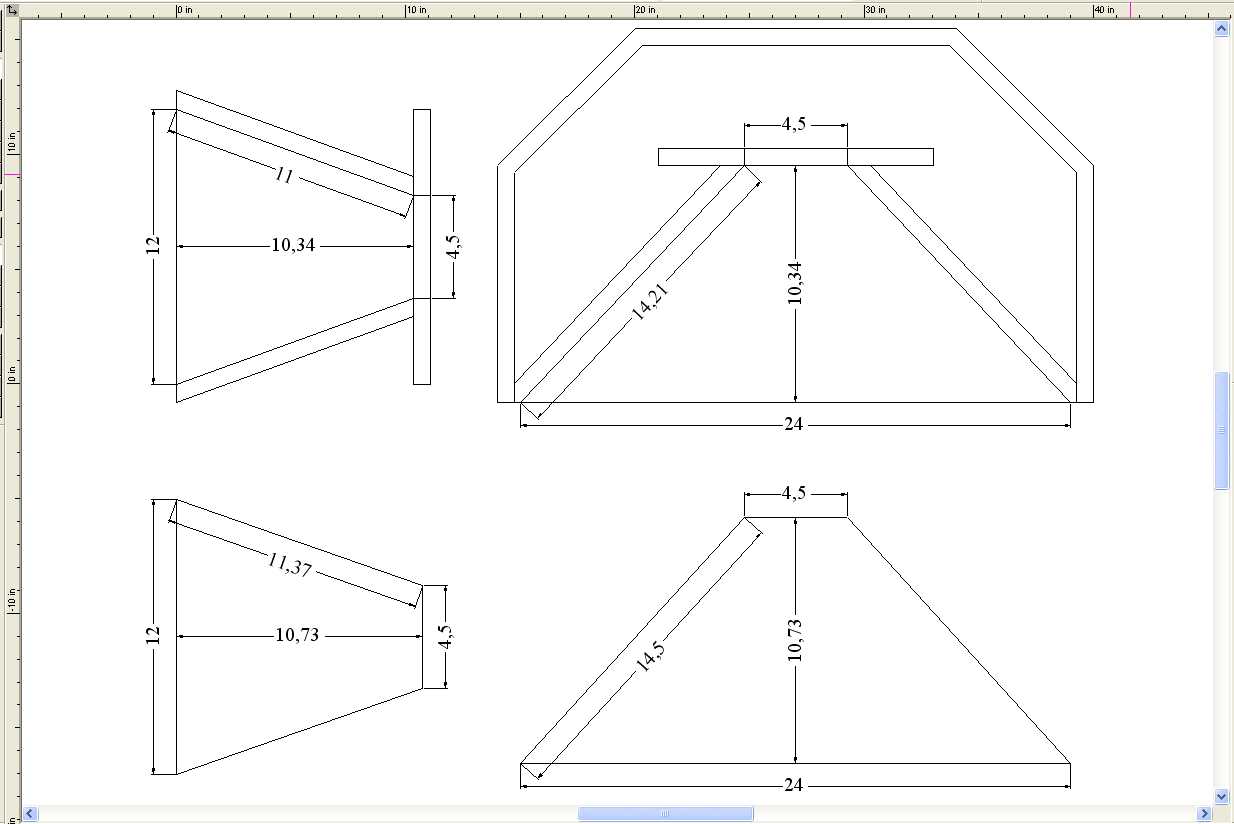

I wanted to make a cad drawing of the midhorn, to get the angles on the sides.

Just bought a new tablesaw, and want to try to minimize the sanding a bit, by cutting the angles on the saw.

But when I make the sides 14.5" long, the top and bottom becomes 11.37" long. And when I make the top and bottom 11" long, the sides become 14.21" long.

Which one is correct, can you tell me the exact depth of the horn, that way I can draw it up using depth instead.

I have included a picture of the two drawings.

Regards
Kim

Attachment: 7pi_horn.jpg
(Size: 51.23KB, Downloaded 6015 times)
